SATCO | SKU:
S29917

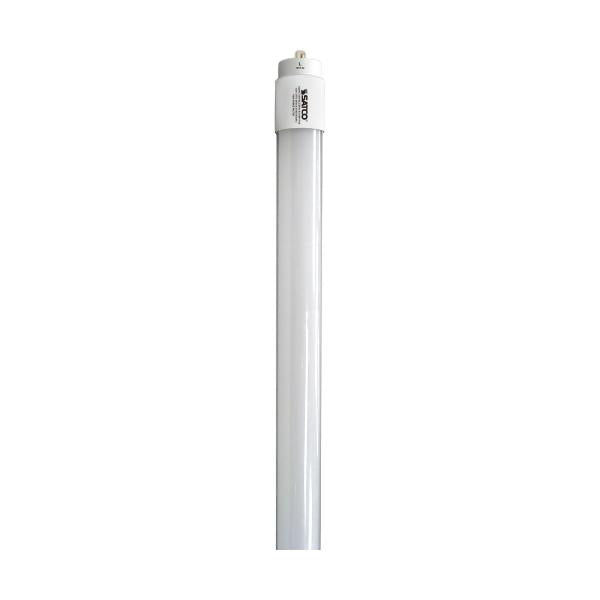

40T8/LED/96-835/BP/FA8
40 Watt - 8 Foot - T8 LED - Single pin base - 3500K - 50000 Average rated hours - 5300 Lumens - Type B - Ballast Bypass - Double Ended Wiring - DLC 5.1
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs - Ballast Bypass
Brand SATCO
Additional Info Suitable for Emergency Lighting only with Satco EM Driver #S8002
Amps 0.333-0.144A
ANSI Base Fa8
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 210
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Neutral White
CRI 82
DLC Approved Yes
DLC Classification Standard
DLC ID PLSDLWQ3P1GE
DLC Primary Use Internal Driver/Line Voltage (UL Type B) Lamps
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Linear
Flr Equiv 59W
Avg Rated Hours 50000
Image File Name S29917.jpg
Incandescent Equiv 125W
Indoor Outdoor Indoor
Lamp Base Single Pin
Lamp Filament LED
Lamp Shape T8
Lamp Ballast Type A/B/C Type B
Lamp End Type Double Ended
Lens Finish White
Lumens 5300L
Material Glass
Minimum Compartment Size Length: 96.063 in. Width: 10.630 in. Heigth: 2.756 in.
MOD Decimal In. 1
MOL Decimal In. 94
Nominal Length In. 96
NSF Approved Yes
Operating Frequency 50/60Hz
Operating Temp -20C (-4F) to +45C (+113F)
Order In Multiples Of 10
Power Factor 0.9
Rated For Enclosed Fixture Yes
Replaces S9917
RoHS Compliant Yes
Safety Listing cRUus - Recognized Component;cULus - Certified;cULus - Classified
Location Rating Damp
SDS class LED_Lamp
Shatter Proof Type PET Coated
Technology LED
Temperature (CCT) 3500K
THD 20%
Three-Way No
Volts 120V-277V
Watts 40W
Weight Lb. 0.88
IOT Enabled No
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs - Ballast Bypass
Brand SATCO
Additional Info Suitable for Emergency Lighting only with Satco EM Driver #S8002
Amps 0.333-0.144A
ANSI Base Fa8
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 210
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Neutral White
CRI 82
DLC Approved Yes
DLC Classification Standard
DLC ID PLSDLWQ3P1GE
DLC Primary Use Internal Driver/Line Voltage (UL Type B) Lamps
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Linear
Flr Equiv 59W
Avg Rated Hours 50000
Image File Name S29917.jpg
Incandescent Equiv 125W
Indoor Outdoor Indoor
Lamp Base Single Pin
Lamp Filament LED
Lamp Shape T8
Lamp Ballast Type A/B/C Type B
Lamp End Type Double Ended
Lens Finish White
Lumens 5300L
Material Glass
Minimum Compartment Size Length: 96.063 in. Width: 10.630 in. Heigth: 2.756 in.
MOD Decimal In. 1
MOL Decimal In. 94
Nominal Length In. 96
NSF Approved Yes
Operating Frequency 50/60Hz
Operating Temp -20C (-4F) to +45C (+113F)
Order In Multiples Of 10
Power Factor 0.9
Rated For Enclosed Fixture Yes
Replaces S9917
RoHS Compliant Yes
Safety Listing cRUus - Recognized Component;cULus - Certified;cULus - Classified
Location Rating Damp
SDS class LED_Lamp
Shatter Proof Type PET Coated
Technology LED
Temperature (CCT) 3500K
THD 20%
Three-Way No
Volts 120V-277V
Watts 40W
Weight Lb. 0.88
IOT Enabled No
