SATCO | SKU:
S28715
80W/LED/HID/5K/277-347V/EX39

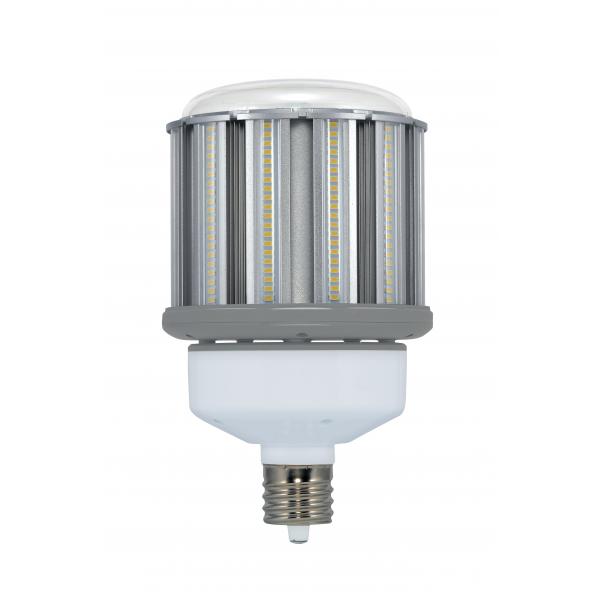

80 Watt LED HID Replacement - 5000K - Mogul extended base - Type B Ballast Bypass -277-347 Volt
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand Hi-Pro
Additional Info Emits no UV light / Contains no Mercury (Hg)
Amps 0.289-0.231A
ANSI Base EX39
Ballasting Requirements Ballast Bypass-Direct wire only 277-347V
Beam Spread 300
Burning Position Base Up or Down
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Natural Light
Common Purpose Industrial and commercial applications
CRI 80+
Dimmable Non-Dimmable
DLC Approved No
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Clear
Product Type Corncob
Flr Equiv 100W
HID Equiv 320W
Avg Rated Hours 50000
Housing Color White/Grey
Image File Name S28715.jpg
Incandescent Equiv 400W
Includes Safety chain
Indoor Outdoor Indoor;Outdoor
IP Rating IP65
Lamp Base Mogul Extended
Lamp Filament LED
Lamp Shape Corncob
Lamp Ballast Type A/B/C Type B
Lensed Yes
Lens Finish Clear
Lumens 10640L
Material Aluminum / Plastic
Minimum Compartment Size Length: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
MOD Decimal In. 5.87
MOL Decimal In. 9.25
Operating Frequency 50-60Hz
Operating Temp -20C (-4F) to +65C (+149F)
Order In Multiples Of 1
Power Factor >0.88
Rated For Enclosed Fixture Yes
RoHS Compliant Yes
Safety Listing cULus - Certified;cULus - Classified
Location Rating Damp
SDS class LED_Lamp
Technology LED
Temperature (CCT) 5000K
Thermal Management Hi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control).I
Three-Way No
Volts 277V-347V
Watts 80W
Weight Lb. 3.5
Working Voltage AC 250-380V
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand Hi-Pro
Additional Info Emits no UV light / Contains no Mercury (Hg)
Amps 0.289-0.231A
ANSI Base EX39
Ballasting Requirements Ballast Bypass-Direct wire only 277-347V
Beam Spread 300
Burning Position Base Up or Down
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Natural Light
Common Purpose Industrial and commercial applications
CRI 80+
Dimmable Non-Dimmable
DLC Approved No
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Clear
Product Type Corncob
Flr Equiv 100W
HID Equiv 320W
Avg Rated Hours 50000
Housing Color White/Grey
Image File Name S28715.jpg
Incandescent Equiv 400W
Includes Safety chain
Indoor Outdoor Indoor;Outdoor
IP Rating IP65
Lamp Base Mogul Extended
Lamp Filament LED
Lamp Shape Corncob
Lamp Ballast Type A/B/C Type B
Lensed Yes
Lens Finish Clear
Lumens 10640L
Material Aluminum / Plastic
Minimum Compartment Size Length: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
MOD Decimal In. 5.87
MOL Decimal In. 9.25
Operating Frequency 50-60Hz
Operating Temp -20C (-4F) to +65C (+149F)
Order In Multiples Of 1
Power Factor >0.88
Rated For Enclosed Fixture Yes
RoHS Compliant Yes
Safety Listing cULus - Certified;cULus - Classified
Location Rating Damp
SDS class LED_Lamp
Technology LED
Temperature (CCT) 5000K
Thermal Management Hi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control).I
Three-Way No
Volts 277V-347V
Watts 80W
Weight Lb. 3.5
Working Voltage AC 250-380V
