SATCO | SKU:
S11731
17T8/LED/48-CCT/BB/BP

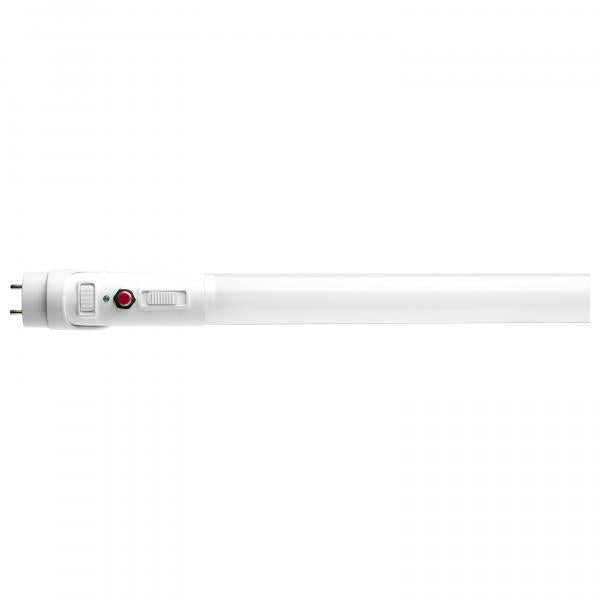

17 Watt 48 Inch T8 LED - 35K/40K/50K CCT Selectable - Ballast Bypass with Battery Backup - G13 Base - 120-277 Volt
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs - Ballast Bypass
Brand SATCO
Additional Info 5 Watts and 700 Lumens in Emergency Mode
Amps 0.142-0.061A
ANSI Base G13
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 140
Burning Position Horizontal
CCT Selectable Yes
CA Web Text Lawful for sale
CRI 83
DLC Approved Yes
DLC Classification Standard
DLC ID S-MASCZT
DLC Primary Use Internal Driver/Line Voltage (UL Type B) Lamps
Enclosure Rating Not for use in fully enclosed vapor tight fixtures
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Linear
Flr Equiv 32W
Avg Rated Hours 50000
Housing Color White
Image File Name S11731.jpg
Incandescent Equiv 90W
Indoor Outdoor Indoor
Installation Notes Maximum Mounting Height: 13 Feet
IP Rating IP20
Lamp Base Medium Bi Pin
Lamp Filament LED
Lamp Shape T8
Lamp Ballast Type A/B/C Type B
Lamp End Type Single Ended
Lens Finish Frost
Lens Material Polycarbonate (PC)
Lumens 2100L/2300L/2200L
Material Aluminum
MOD Decimal In. 1.13
MOL Decimal In. 47.78
Nominal Length In. 48
NSF Approved Yes
Operating Frequency 60Hz
Operating Temp -20C (-4F) to +45C (+113F)
Power Factor 0.9
Product Notes Height at switch: 1.30 Inches; Work time after power failure: 90 Minutes; Battery Recharge Time is 24 hours
Rated For Enclosed Fixture Yes
RoHS Compliant Yes
Safety Listing cETLus - Listed;cRUus - Recognized Component;cULus - Classified
Location Rating Damp
SDS class LED_Lamp
Shatter Proof Type Yes
Technology LED
Temperature (CCT) 3500K/4000K/5000K
THD <25%
Three-Way No
Tube Guard Use No
Volts 120V-277V
Watts 17W
Weight Lb. 0.99
IOT Enabled No
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs - Ballast Bypass
Brand SATCO
Additional Info 5 Watts and 700 Lumens in Emergency Mode
Amps 0.142-0.061A
ANSI Base G13
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 140
Burning Position Horizontal
CCT Selectable Yes
CA Web Text Lawful for sale
CRI 83
DLC Approved Yes
DLC Classification Standard
DLC ID S-MASCZT
DLC Primary Use Internal Driver/Line Voltage (UL Type B) Lamps
Enclosure Rating Not for use in fully enclosed vapor tight fixtures
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Linear
Flr Equiv 32W
Avg Rated Hours 50000
Housing Color White
Image File Name S11731.jpg
Incandescent Equiv 90W
Indoor Outdoor Indoor
Installation Notes Maximum Mounting Height: 13 Feet
IP Rating IP20
Lamp Base Medium Bi Pin
Lamp Filament LED
Lamp Shape T8
Lamp Ballast Type A/B/C Type B
Lamp End Type Single Ended
Lens Finish Frost
Lens Material Polycarbonate (PC)
Lumens 2100L/2300L/2200L
Material Aluminum
MOD Decimal In. 1.13
MOL Decimal In. 47.78
Nominal Length In. 48
NSF Approved Yes
Operating Frequency 60Hz
Operating Temp -20C (-4F) to +45C (+113F)
Power Factor 0.9
Product Notes Height at switch: 1.30 Inches; Work time after power failure: 90 Minutes; Battery Recharge Time is 24 hours
Rated For Enclosed Fixture Yes
RoHS Compliant Yes
Safety Listing cETLus - Listed;cRUus - Recognized Component;cULus - Classified
Location Rating Damp
SDS class LED_Lamp
Shatter Proof Type Yes
Technology LED
Temperature (CCT) 3500K/4000K/5000K
THD <25%
Three-Way No
Tube Guard Use No
Volts 120V-277V
Watts 17W
Weight Lb. 0.99
IOT Enabled No
