NUVO  |  SKU: 65/138

28W LED CANOPY FIXTURE 8.5"

Contact Us To Order

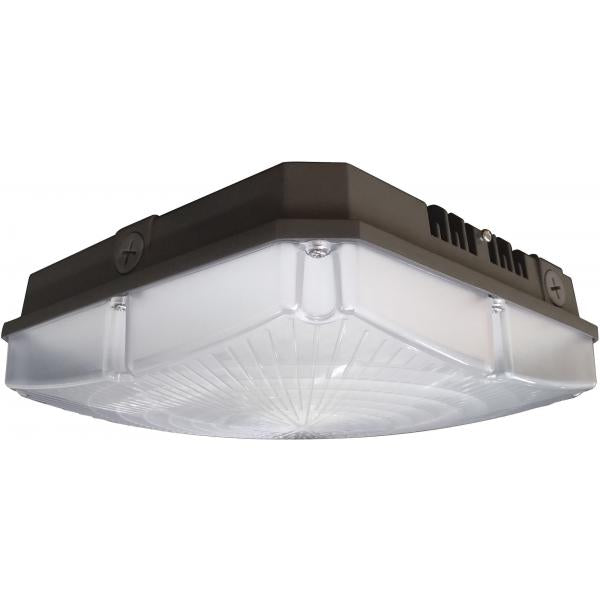

LED Canopy Fixture - 28W - 4000K - 120-277V
UNSPSC: 39111538
Warranty: 5 Year Limited - Fixtures
Brand: NUVO
Additional Info: UV stabilized powder coated finish
ANSI Base: Integrated
Beam Spread: 150
BUG Rating: B2-U3-G1
Bulb Included: Integrated
CA Prop 65: Lead
CCT Selectable: No
CA Web Text: Lawful for sale
Color Temp: Cool White
Connection: Direct Wired
CRI: 80
Dimension String: L:8.50" W:8.50" H:3.75"
Dimmable: Yes-Dimmable
Dimmable Function: 0-10V Dimming Only
DLC Approved: Yes
DLC Classification: Premium
DLC ID: PL9JAGKOXH4R
DLC Primary Use: Parking Garage Luminaires
ENERGY STAR: No
FCC Compliant: Yes
Finish: Bronze
Finish Family: Bronze
Fixture shape: Square
Product Type: Canopy
Height In.: 3.75
Avg Rated Hours: 50000
Incandescent Equiv: 200W
Indoor Outdoor: Outdoor
IP Rating: IP65
Lamp Base: Integrated
Lamp Shape: Integrated LED
Length In.: 8.5
Lens Material: Polycarbonate (PC)
Lumens: 3360L
Material: Die-cast Aluminum
Mounting Procedure: Ceiling
Operating Frequency: 50/60Hz
Operating Temp: -40C (-40F) to +40C (+104F)
Photocell: Multiple Optional Sensors Available
Power Factor: 0.9
Replaceable Light Source: No
RoHS Compliant: Yes
Safety Listing: cULus - Listed
Location Rating: Wet
SDS class: LED_Fixture
Style: Utility
Surge Protection: Built-in surge protection - 2KV
Technology: LED
Temperature (CCT): 4000K
THD: 10.20%
Volts: 100V-277V
Watts: 28W
Wattage Selectable: No
Weight Lb.: 3.35
Width In.: 8.5
