SCHNEIDER ELECTRIC USA INC | SKU:
3703717

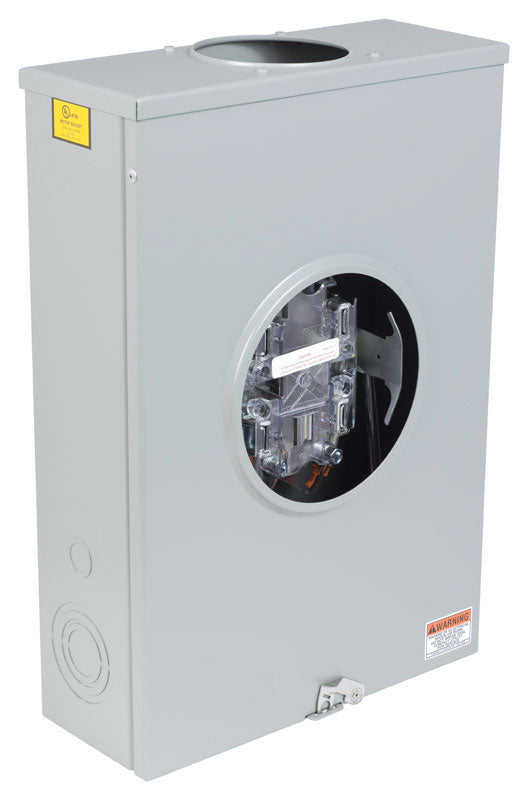

METER SOCKET RINGLES200A
Length:
Maximum Amperage:
Mounting Type: Bolt-On
Nema Type:
Number of Gangs:
Number of Phases: 1
Number of Spaces:
Packaging Type: Boxed
Product Type: Meter Socket
Service Feed Type: Overhead/Underground
Socket Type:
UL Listed: Yes
Volts: 600
Brand Name: Square D
Width:
CSA Listed:
Amps: 200
Depth:
Breakers Included: No
Sub Brand: Schneider Electric
Indoor or Outdoor:
ANSI Certified: Ringless meter socket with lever bypass surface mounts to provide for a single electric meter
Accommodates multiple wiring configurations for a-l size hub provision in the top end wall and 3 in. maximum knockouts
Meter main uses an aluminum bus
Single phase, three wire circuit configuration
Nema 3R rated enclosure for outdoor use
ANSI and UL listed for use as service entrance equipment with a maximum load of 600 vac max.
5-jaw meter socket is compatible with #6-350 mcm maximum conductors for line, load and neutral
Maximum Amperage:
Mounting Type: Bolt-On
Nema Type:
Number of Gangs:
Number of Phases: 1
Number of Spaces:
Packaging Type: Boxed
Product Type: Meter Socket
Service Feed Type: Overhead/Underground
Socket Type:
UL Listed: Yes
Volts: 600
Brand Name: Square D
Width:
CSA Listed:
Amps: 200
Depth:
Breakers Included: No
Sub Brand: Schneider Electric
Indoor or Outdoor:
ANSI Certified: Ringless meter socket with lever bypass surface mounts to provide for a single electric meter
Accommodates multiple wiring configurations for a-l size hub provision in the top end wall and 3 in. maximum knockouts
Meter main uses an aluminum bus
Single phase, three wire circuit configuration
Nema 3R rated enclosure for outdoor use
ANSI and UL listed for use as service entrance equipment with a maximum load of 600 vac max.
5-jaw meter socket is compatible with #6-350 mcm maximum conductors for line, load and neutral
METER SOCKET RINGLES200A
$269.99
Unit price
/
Unavailable
