SATCO | SKU:
S29911
25T5/LED/46-850/DR

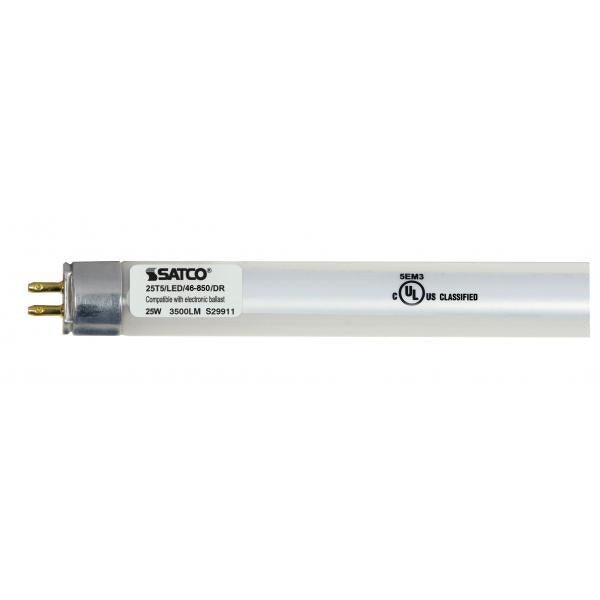

25 Watt T5 LED - Miniature bi-pin base - 5000K - 50000 Average rated hours - 3500 Lumens - Type A - Ballast dependent
UNSPSC 39101628
Warranty 5 Year Limited - T5 LED Bulbs
Brand SATCO
Additional Info Light Emitting Area of 325 degrees; System Wattage (Type A) - 28W
Amps 0.208-0.090A
ANSI Base G5
Ballast Bypass Direct Direct
Ballasting Requirements Ballast required
Beam Spread 185
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Natural Light
CRI 82
Dimmable Yes-Dimmable
Dimmable Function Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved Yes
DLC Classification Standard
DLC ID PL2M6895FL33
DLC Primary Use Replacement Lamps (plug and play) (UL Type A)
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Gloss
Product Type Linear
Flr Equiv 54W
Avg Rated Hours 50000
Image File Name S29911.jpg
Incandescent Equiv 100W
Includes Integrated thermal fuse at pins
Integrated Features Integrated thermal fuse at pins
Lamp Base Miniature Bi Pin
Lamp Filament LED
Lamp Shape T5
Lamp Ballast Type A/B/C Type A
Lamp End Type Double Ended
Lensed Yes
Lens Finish Gloss
Lumens 3500L
Material Aluminum / Glass
MOD Decimal In. 0.63
MOL Decimal In. 46
Nominal Length In. 48
NSF Approved Yes
Operating Frequency 50/60Hz
Operating Temp -20C (-4F) to +45C (+113F)
Order In Multiples Of 10
Power Factor 0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
Replaces S9711;S9911
RoHS Compliant Yes
Safety Listing cULus - Listed
Location Rating Damp
SDS class LED_Lamp
Technology LED
Temperature (CCT) 5000K
THD 20%
Three-Way No
Volts 120V-277V
Watts 25W
Weight Lb. 0.3
UNSPSC 39101628
Warranty 5 Year Limited - T5 LED Bulbs
Brand SATCO
Additional Info Light Emitting Area of 325 degrees; System Wattage (Type A) - 28W
Amps 0.208-0.090A
ANSI Base G5
Ballast Bypass Direct Direct
Ballasting Requirements Ballast required
Beam Spread 185
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Natural Light
CRI 82
Dimmable Yes-Dimmable
Dimmable Function Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved Yes
DLC Classification Standard
DLC ID PL2M6895FL33
DLC Primary Use Replacement Lamps (plug and play) (UL Type A)
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Gloss
Product Type Linear
Flr Equiv 54W
Avg Rated Hours 50000
Image File Name S29911.jpg
Incandescent Equiv 100W
Includes Integrated thermal fuse at pins
Integrated Features Integrated thermal fuse at pins
Lamp Base Miniature Bi Pin
Lamp Filament LED
Lamp Shape T5
Lamp Ballast Type A/B/C Type A
Lamp End Type Double Ended
Lensed Yes
Lens Finish Gloss
Lumens 3500L
Material Aluminum / Glass
MOD Decimal In. 0.63
MOL Decimal In. 46
Nominal Length In. 48
NSF Approved Yes
Operating Frequency 50/60Hz
Operating Temp -20C (-4F) to +45C (+113F)
Order In Multiples Of 10
Power Factor 0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
Replaces S9711;S9911
RoHS Compliant Yes
Safety Listing cULus - Listed
Location Rating Damp
SDS class LED_Lamp
Technology LED
Temperature (CCT) 5000K
THD 20%
Three-Way No
Volts 120V-277V
Watts 25W
Weight Lb. 0.3
