SATCO | SKU:
S23166
54W/LED/CCT/277-480V/EX39

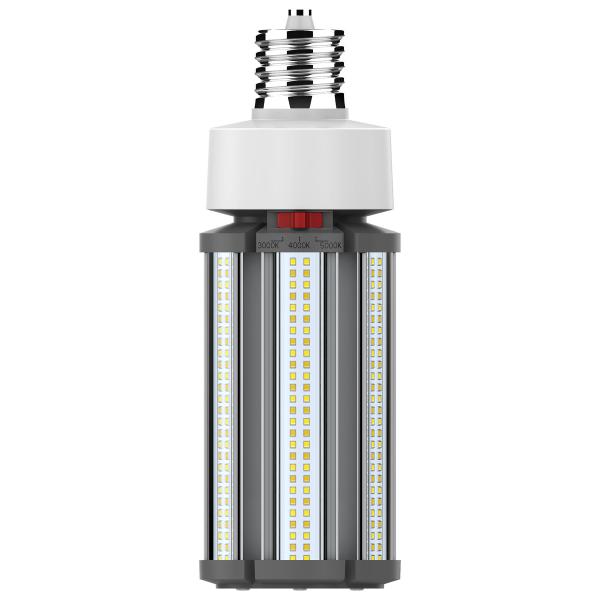

54 Watt LED HID Replacement - CCT Selectable - Type B - Ballast Bypass - Mogul Extended Base - 277-480 Volt - ColorQuick Technology
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand Hi-Pro
Amps 0.195-0.113A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 300
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
Color Temp Warm to Cool White
CRI 80
Dimmable Yes-Dimmable
Dimmable Function Only dimmable via WiFi Module 80-954 (available for purchase) and via the Starfish App
DLC Approved Yes
DLC Classification Standard
DLC ID S-1ESYVO
DLC Primary Use Replacement Lamps for Outdoor Pole/Arm-mounted Decorative Luminaires (Type B)
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Corncob
HID Equiv 250W
Avg Rated Hours 50000
Housing Color Dark Gray
Image File Name S23166.jpg
Incandescent Equiv 200W
Indoor Outdoor Indoor;Outdoor
IP Rating IP64
Lamp Base Mogul Extended
Lamp Filament LED
Lamp Shape Corncob
Lamp Ballast Type A/B/C Type B
Lensed Yes
Lens Finish Clear
Lens Material Plastic
Lumens 7020L/7560L/7290L
Material Aluminum / Polycarbonate (PC)
Minimum Compartment Size Length: 7.87 in. Width: 7.87 in.
MOD Decimal In. 3.35
MOL Decimal In. 9.53
NSF Approved No
Operating Frequency 50/60Hz
Operating Temp -30C (-22F) to +45C (+113F)
Order In Multiples Of 1
Photocell Optional
Power Factor 0.9
Rated For Enclosed Fixture Yes
Replaces S13123;S28714;S8714
RoHS Compliant Yes
Safety Listing cRUus - Recognized Component;cULus - Classified
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 4KV
Technology LED
Temperature (CCT) 3000K/4000K/5000K
THD 8.90%
Three-Way No
Volts 277V-480V
Watts 54W
Weight Lb. 1.65
IOT Enabled No
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand Hi-Pro
Amps 0.195-0.113A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 300
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
Color Temp Warm to Cool White
CRI 80
Dimmable Yes-Dimmable
Dimmable Function Only dimmable via WiFi Module 80-954 (available for purchase) and via the Starfish App
DLC Approved Yes
DLC Classification Standard
DLC ID S-1ESYVO
DLC Primary Use Replacement Lamps for Outdoor Pole/Arm-mounted Decorative Luminaires (Type B)
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Corncob
HID Equiv 250W
Avg Rated Hours 50000
Housing Color Dark Gray
Image File Name S23166.jpg
Incandescent Equiv 200W
Indoor Outdoor Indoor;Outdoor
IP Rating IP64
Lamp Base Mogul Extended
Lamp Filament LED
Lamp Shape Corncob
Lamp Ballast Type A/B/C Type B
Lensed Yes
Lens Finish Clear
Lens Material Plastic
Lumens 7020L/7560L/7290L
Material Aluminum / Polycarbonate (PC)
Minimum Compartment Size Length: 7.87 in. Width: 7.87 in.
MOD Decimal In. 3.35
MOL Decimal In. 9.53
NSF Approved No
Operating Frequency 50/60Hz
Operating Temp -30C (-22F) to +45C (+113F)
Order In Multiples Of 1
Photocell Optional
Power Factor 0.9
Rated For Enclosed Fixture Yes
Replaces S13123;S28714;S8714
RoHS Compliant Yes
Safety Listing cRUus - Recognized Component;cULus - Classified
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 4KV
Technology LED
Temperature (CCT) 3000K/4000K/5000K
THD 8.90%
Three-Way No
Volts 277V-480V
Watts 54W
Weight Lb. 1.65
IOT Enabled No
