SATCO | SKU:
S23162
36W/LED/CCT/277-480V/E26

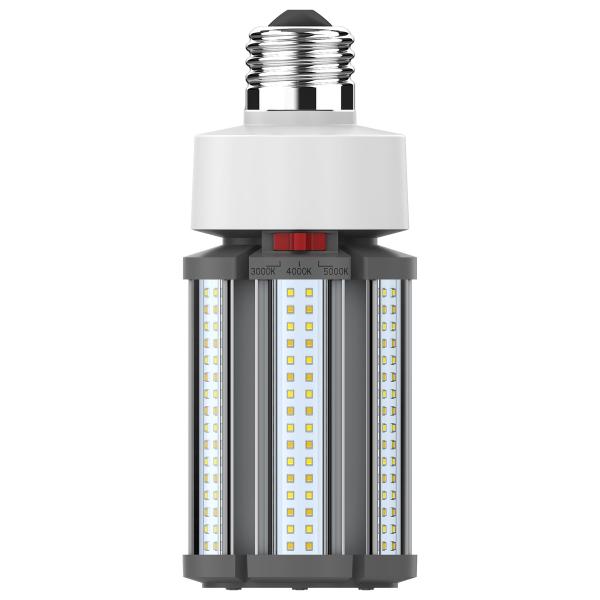

36 Watt LED HID Replacement - CCT Selectable - Type B - Ballast Bypass - Medium Base - 277-480 Volt - ColorQuick Technology
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand Hi-Pro
Amps 0.130-0.075A
ANSI Base E26
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 300
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
Color Temp Warm to Cool White
CRI 80
Dimmable Yes-Dimmable
Dimmable Function Only Dimmable Via Sensor Port
DLC Approved No
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Corncob
HID Equiv 175W
Avg Rated Hours 50000
Housing Color Dark Gray
Image File Name S23162.jpg
Incandescent Equiv 125W
Indoor Outdoor Indoor;Outdoor
IP Rating IP64
Lamp Base Medium
Lamp Filament LED
Lamp Shape Corncob
Lamp Ballast Type A/B/C Type B
Lensed Yes
Lens Finish Clear
Lens Material Plastic
Lumens 4680L/5040L/4860L
Material Aluminum / Polycarbonate (PC)
Minimum Compartment Size Length: 10.55 in. Width: 8.00 in. Height: 8.00 in.
MOD Decimal In. 3.35
MOL Decimal In. 7.73
NSF Approved No
Operating Frequency 50/60Hz
Operating Temp -30C (-22F) to +45C (+113F)
Order In Multiples Of 1
Photocell Optional
Power Factor 0.9
Rated For Enclosed Fixture Yes
Replaces S28712;S8712
RoHS Compliant Yes
Safety Listing cRUus - Recognized Component;cUL - Classified
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 4KV
Technology LED
Temperature (CCT) 3000K/4000K/5000K
Three-Way No
Volts 277V-480V
Watts 36W
Weight Lb. 1.4
IOT Enabled No
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand Hi-Pro
Amps 0.130-0.075A
ANSI Base E26
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 300
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
Color Temp Warm to Cool White
CRI 80
Dimmable Yes-Dimmable
Dimmable Function Only Dimmable Via Sensor Port
DLC Approved No
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Corncob
HID Equiv 175W
Avg Rated Hours 50000
Housing Color Dark Gray
Image File Name S23162.jpg
Incandescent Equiv 125W
Indoor Outdoor Indoor;Outdoor
IP Rating IP64
Lamp Base Medium
Lamp Filament LED
Lamp Shape Corncob
Lamp Ballast Type A/B/C Type B
Lensed Yes
Lens Finish Clear
Lens Material Plastic
Lumens 4680L/5040L/4860L
Material Aluminum / Polycarbonate (PC)
Minimum Compartment Size Length: 10.55 in. Width: 8.00 in. Height: 8.00 in.
MOD Decimal In. 3.35
MOL Decimal In. 7.73
NSF Approved No
Operating Frequency 50/60Hz
Operating Temp -30C (-22F) to +45C (+113F)
Order In Multiples Of 1
Photocell Optional
Power Factor 0.9
Rated For Enclosed Fixture Yes
Replaces S28712;S8712
RoHS Compliant Yes
Safety Listing cRUus - Recognized Component;cUL - Classified
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 4KV
Technology LED
Temperature (CCT) 3000K/4000K/5000K
Three-Way No
Volts 277V-480V
Watts 36W
Weight Lb. 1.4
IOT Enabled No
