SATCO | SKU:
S23142

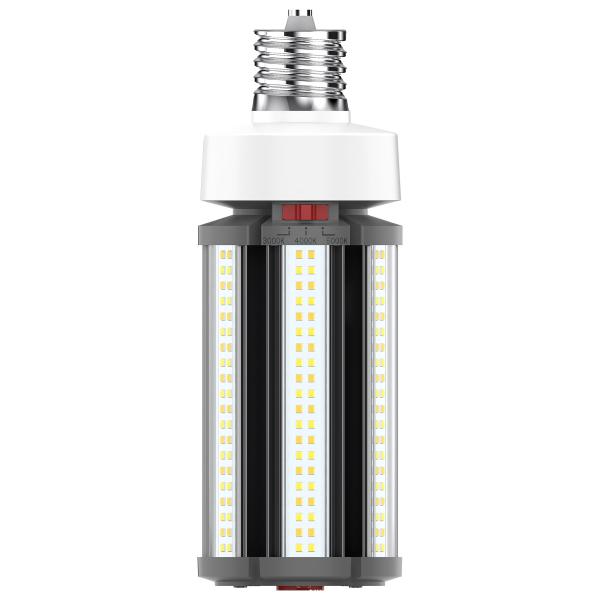

54W/LED/CCT/100-277V/EX39
54/45/36 Wattage Selectable - LED HID Replacement - CCT Selectable - Type B - Ballast Bypass - Extended Mogul base - 100-277 Volt - ColorQuick Technology - PowerQuick Technology
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand Hi-Pro
Additional Info Power selectable
Amps 0.540-0.195/0.450-0.162/0.360-0.130A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 300
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
Color Temp Warm to Cool White
CRI 80
DLC Approved Yes
DLC Classification Standard
DLC ID S-KS5HW0
DLC Primary Use Replacement Lamps for Outdoor Pole/Arm-mounted Decorative Luminaires (Type B)
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Corncob
HID Equiv 200W/175W/150W
Avg Rated Hours 50000
Housing Color Dark Gray
Image File Name S23142.jpg
Incandescent Equiv 125W/150W/200W
Indoor Outdoor Indoor;Outdoor
Lamp Base Mogul Extended
Lamp Filament LED
Lamp Shape Corncob
Lamp Ballast Type A/B/C Type B
Lens Material Plastic
Lumens 7560L/6300L/5040L
Material Plastic (PS)
Minimum Compartment Size Length: 7.88 in. Width: 7.88 in.
MOD Decimal In. 3.35
MOL Decimal In. 9.69
NSF Approved No
Operating Frequency 50-60Hz
Operating Temp -40C (-40F) to +60C (+140F)
Power Factor >0.9
Rated For Enclosed Fixture Yes
Replaces S13142
RoHS Compliant Yes
Safety Listing cULus - Listed
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 4KV
Technology LED
Temperature (CCT) 3000K/4000K/5000K
THD 16.60%
Three-Way Yes
Volts 100V-277V
Watts 54W/45W/36W
Weight Lb. 1.76
IOT Enabled No
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand Hi-Pro
Additional Info Power selectable
Amps 0.540-0.195/0.450-0.162/0.360-0.130A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 300
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
Color Temp Warm to Cool White
CRI 80
DLC Approved Yes
DLC Classification Standard
DLC ID S-KS5HW0
DLC Primary Use Replacement Lamps for Outdoor Pole/Arm-mounted Decorative Luminaires (Type B)
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Corncob
HID Equiv 200W/175W/150W
Avg Rated Hours 50000
Housing Color Dark Gray
Image File Name S23142.jpg
Incandescent Equiv 125W/150W/200W
Indoor Outdoor Indoor;Outdoor
Lamp Base Mogul Extended
Lamp Filament LED
Lamp Shape Corncob
Lamp Ballast Type A/B/C Type B
Lens Material Plastic
Lumens 7560L/6300L/5040L
Material Plastic (PS)
Minimum Compartment Size Length: 7.88 in. Width: 7.88 in.
MOD Decimal In. 3.35
MOL Decimal In. 9.69
NSF Approved No
Operating Frequency 50-60Hz
Operating Temp -40C (-40F) to +60C (+140F)
Power Factor >0.9
Rated For Enclosed Fixture Yes
Replaces S13142
RoHS Compliant Yes
Safety Listing cULus - Listed
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 4KV
Technology LED
Temperature (CCT) 3000K/4000K/5000K
THD 16.60%
Three-Way Yes
Volts 100V-277V
Watts 54W/45W/36W
Weight Lb. 1.76
IOT Enabled No
