SATCO | SKU:
S23114
130W/LED/HID-HB/4K/120-277V

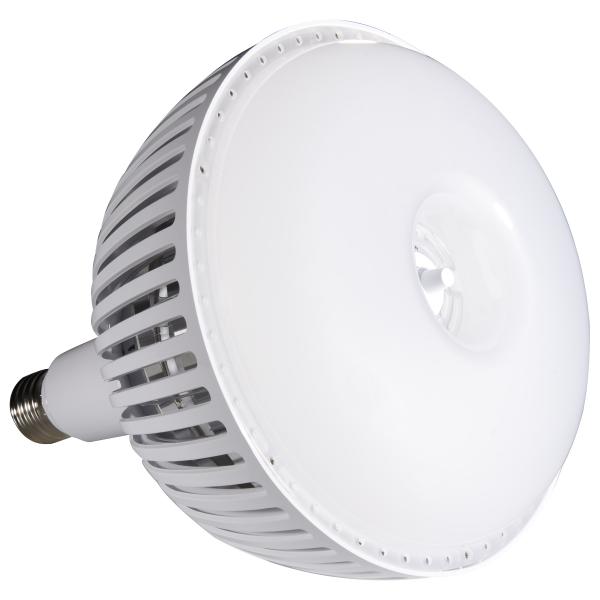

130 Watt - LED HID Replacement - 4000K - Mogul extended base - Type B Ballast Bypass - 120-277 Volt - Dimmable
UNSPSC 39101628
Warranty 3 Year Limited
Brand Hi-Pro
Amps 1.083-0.469A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 115
Burning Position Universal
Candle Power 5000
CCT Selectable No
CA Web Text Lawful for sale
Color Temp Cool White
Common Purpose High bay / Low bay / Warehouses / Gymnasiums / Factories / Health clubs
CRI 80
Dimmable Yes-Dimmable
Dimmable Function Dimmable only via the built-in dimmer on the lamp. Not dimmable via wall switch
DLC Approved No
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Translucent White
Product Type Hi-Bay
HID Equiv 400W
Avg Rated Hours 35000
Housing Color White
Image File Name S23114.jpg
Incandescent Equiv 250W
Indoor Outdoor Indoor
Lamp Base Mogul Extended
Lamp Filament LED
Lamp Shape HB77
Lamp Ballast Type A/B/C Type B
Lensed Yes
Lens Material Plastic
Lumens 16300L
Material Aluminum
Minimum Compartment Size Length: 16.5 in. Width: 16.5 in. Height: 13 in.
MOD Decimal In. 9.65
MOL Decimal In. 12.4
Operating Frequency 50-60Hz
Operating Temp -40C (-40F) to +60C (+140F)
Order In Multiples Of 1
Power Factor 0.99/0.95
Product Notes Fixture has a built-in dimming control feature
Rated For Enclosed Fixture Yes
RoHS Compliant Yes
Safety Listing cULus - Certified;cULus - Classified
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 6KV
Technology LED
Temperature (CCT) 4000K
Three-Way No
Volts 120V-277V
Watts 130W
Weight Lb. 2.98
IOT Enabled No
UNSPSC 39101628
Warranty 3 Year Limited
Brand Hi-Pro
Amps 1.083-0.469A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 115
Burning Position Universal
Candle Power 5000
CCT Selectable No
CA Web Text Lawful for sale
Color Temp Cool White
Common Purpose High bay / Low bay / Warehouses / Gymnasiums / Factories / Health clubs
CRI 80
Dimmable Yes-Dimmable
Dimmable Function Dimmable only via the built-in dimmer on the lamp. Not dimmable via wall switch
DLC Approved No
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Translucent White
Product Type Hi-Bay
HID Equiv 400W
Avg Rated Hours 35000
Housing Color White
Image File Name S23114.jpg
Incandescent Equiv 250W
Indoor Outdoor Indoor
Lamp Base Mogul Extended
Lamp Filament LED
Lamp Shape HB77
Lamp Ballast Type A/B/C Type B
Lensed Yes
Lens Material Plastic
Lumens 16300L
Material Aluminum
Minimum Compartment Size Length: 16.5 in. Width: 16.5 in. Height: 13 in.
MOD Decimal In. 9.65
MOL Decimal In. 12.4
Operating Frequency 50-60Hz
Operating Temp -40C (-40F) to +60C (+140F)
Order In Multiples Of 1
Power Factor 0.99/0.95
Product Notes Fixture has a built-in dimming control feature
Rated For Enclosed Fixture Yes
RoHS Compliant Yes
Safety Listing cULus - Certified;cULus - Classified
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 6KV
Technology LED
Temperature (CCT) 4000K
Three-Way No
Volts 120V-277V
Watts 130W
Weight Lb. 2.98
IOT Enabled No
