SATCO | SKU:
S18452
13T8/U1-G13/LED/840/DUAL

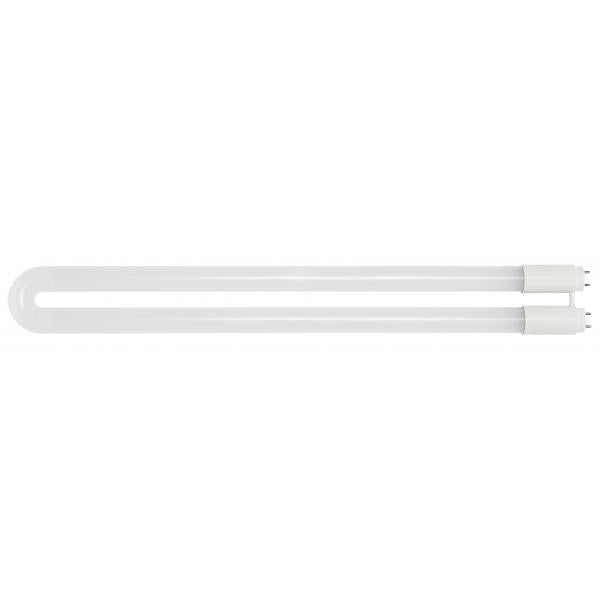

13 Watt T8 U-Bend LED - 50000 Hours - Medium bi-pin base - 1900 Lumens - 4000K - Type A/B - Ballast Dependant or Ballast Bypass - Single or Double Ended Wiring
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs
Brand SATCO
Additional Info Replaces FB31T8/U1
Amps .15A with Electronic Ballast; .12A Ballast Bypass
ANSI Base G13
Ballast Bypass Direct Dual
Ballasting Requirements Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread 160
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Cool White
CRI 80
DLC Approved Yes
DLC Classification Standard
DLC ID PLPLI48DPQYH; PL5RVLSB571
DLC Primary Use Replacement Lamps (plug and play) (UL Type A); Dual Mode Internal Driver (UL Type A and Type B)
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Frost
Product Type U-Bend
Flr Equiv 31W
Avg Rated Hours 50000
Housing Color White
Image File Name S18452.jpg
Incandescent Equiv 50W
Lamp Base Medium Bi Pin
Lamp Filament LED
Lamp Shape T8
Lamp Ballast Type A/B/C Type A/B
Lamp End Type Double Ended;Single Ended
Leg Spacing In. 1.625
Lensed Yes
Lens Finish Frost
Lens Material Plastic (PS)
Lumens 1900L
Material Plastic
MOD Decimal In. 1
MOL Decimal In. 22.59
Nominal Length In. 22.5
NSF Approved ETL Sanitation listed (conforms to NSF)
Operating Frequency 50/60Hz
Operating Temp -25C (-13F) to +45C (+113F)
Power Factor 0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
RoHS Compliant Yes
Safety Listing cULus - Classified;cULus - Listed;ETLus - SANITATION RECOGNIZED COMPONENT
Location Rating Damp
SDS class LED_Lamp
Shatter Proof Type Yes
Technology LED
Temperature (CCT) 4000K
THD 20%
Three-Way No
Volts 120V-277V
Watts 13W
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs
Brand SATCO
Additional Info Replaces FB31T8/U1
Amps .15A with Electronic Ballast; .12A Ballast Bypass
ANSI Base G13
Ballast Bypass Direct Dual
Ballasting Requirements Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread 160
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Cool White
CRI 80
DLC Approved Yes
DLC Classification Standard
DLC ID PLPLI48DPQYH; PL5RVLSB571
DLC Primary Use Replacement Lamps (plug and play) (UL Type A); Dual Mode Internal Driver (UL Type A and Type B)
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Frost
Product Type U-Bend
Flr Equiv 31W
Avg Rated Hours 50000
Housing Color White
Image File Name S18452.jpg
Incandescent Equiv 50W
Lamp Base Medium Bi Pin
Lamp Filament LED
Lamp Shape T8
Lamp Ballast Type A/B/C Type A/B
Lamp End Type Double Ended;Single Ended
Leg Spacing In. 1.625
Lensed Yes
Lens Finish Frost
Lens Material Plastic (PS)
Lumens 1900L
Material Plastic
MOD Decimal In. 1
MOL Decimal In. 22.59
Nominal Length In. 22.5
NSF Approved ETL Sanitation listed (conforms to NSF)
Operating Frequency 50/60Hz
Operating Temp -25C (-13F) to +45C (+113F)
Power Factor 0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
RoHS Compliant Yes
Safety Listing cULus - Classified;cULus - Listed;ETLus - SANITATION RECOGNIZED COMPONENT
Location Rating Damp
SDS class LED_Lamp
Shatter Proof Type Yes
Technology LED
Temperature (CCT) 4000K
THD 20%
Three-Way No
Volts 120V-277V
Watts 13W
