SATCO | SKU:
S16505
FC12T9/LED/CIR/865/BP

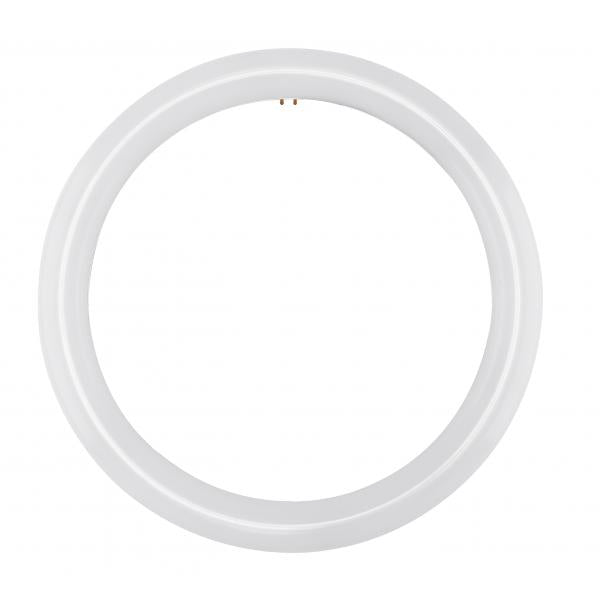

LED Circline - 16 Watt - T9 - 6500K - G10Q Base - 120-277 Volt - Type B - Ballast Bypass
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs - Ballast Bypass
Brand SATCO
Additional Info Replaces 32W fluorescent Circlines
Amps 0.133-0.058A
ANSI Base G10q
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 135
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Daylight
CRI 80
Dimmable Non-Dimmable
DLC Approved No
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Frost
Product Type Circline
Flr Equiv 32W
Avg Rated Hours 50000
Housing Color White
Image File Name S16505.jpg
Incandescent Equiv 100W
Lamp Base G10q (4-Pin)
Lamp Filament LED
Lamp Shape T9
Lamp Ballast Type A/B/C Type B
Lensed Yes
Lens Finish Frost
Lumens 1760L
MOD Decimal In. 1.13
MOL Decimal In. 11.75
Nominal Length In. 12
Operating Frequency 50/60Hz
Operating Temp -25C (-13F) to +45C (+113F)
Power Factor 0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
RoHS Compliant Yes
Safety Listing cETLus - Classified
Location Rating Damp
SDS class LED_Lamp
Technology LED
Temperature (CCT) 6500K
Three-Way No
Volts 120V-277V
Watts 16W
Weight Lb. 0.38
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs - Ballast Bypass
Brand SATCO
Additional Info Replaces 32W fluorescent Circlines
Amps 0.133-0.058A
ANSI Base G10q
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 135
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Daylight
CRI 80
Dimmable Non-Dimmable
DLC Approved No
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Frost
Product Type Circline
Flr Equiv 32W
Avg Rated Hours 50000
Housing Color White
Image File Name S16505.jpg
Incandescent Equiv 100W
Lamp Base G10q (4-Pin)
Lamp Filament LED
Lamp Shape T9
Lamp Ballast Type A/B/C Type B
Lensed Yes
Lens Finish Frost
Lumens 1760L
MOD Decimal In. 1.13
MOL Decimal In. 11.75
Nominal Length In. 12
Operating Frequency 50/60Hz
Operating Temp -25C (-13F) to +45C (+113F)
Power Factor 0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
RoHS Compliant Yes
Safety Listing cETLus - Classified
Location Rating Damp
SDS class LED_Lamp
Technology LED
Temperature (CCT) 6500K
Three-Way No
Volts 120V-277V
Watts 16W
Weight Lb. 0.38
