SATCO | SKU:
S16430
7T8/LED/HO-SIGN/18-3CCT/BP/SE-

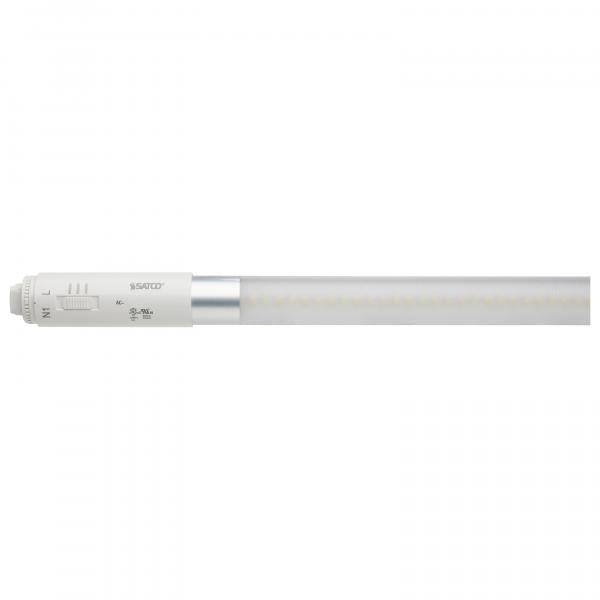

7 Watt T8 LED - CCT Selectable - 120-277 Volt - Single or Double Ended - Type B Ballast Bypass
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs
Brand SATCO
Amps 0.0583-0.0253A
ANSI Base R17d
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 360
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
Color Temp Cool White to Daylight
CRI 83
Dimmable Non-Dimmable
DLC Approved No
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Linear
Flr Equiv 25W
Avg Rated Hours 50000
Image File Name S16430.jpg
Incandescent Equiv 50W
Indoor Outdoor Indoor
IP Rating IP20
Lamp Base Recessed Double Contact HO/VHO
Lamp Filament LED
Lamp Shape T8
Lamp Ballast Type A/B/C Type B
Lamp End Type Double Ended;Single Ended
Lens Finish Frost
Lens Material Plastic
Lumens 950L/1000L/900L
Material Polycarbonate (PC)
MOD Decimal In. 1.13
MOL Decimal In. 15.81
Nominal Length In. 18
NSF Approved ETL Sanitation listed (conforms to NSF)
Operating Frequency 50/60Hz
Operating Temp -20C (-4F) to +45C (+113F)
Order In Multiples Of 10
Power Factor 0.9
Rated For Enclosed Fixture Yes
Replaces S16412;S16413
RoHS Compliant Yes
Safety Listing cRUus - Recognized Component;cULus - Classified;ETLus - SANITATION RECOGNIZED COMPONENT
Location Rating Damp
SDS class LED_Lamp
Technology LED
Temperature (CCT) 4000K/5000K/6500K
THD 25%
Three-Way No
Tube Guard Use No
Volts 120V-277V
Watts 7W
Weight Lb. 0.26
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs
Brand SATCO
Amps 0.0583-0.0253A
ANSI Base R17d
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 360
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
Color Temp Cool White to Daylight
CRI 83
Dimmable Non-Dimmable
DLC Approved No
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Linear
Flr Equiv 25W
Avg Rated Hours 50000
Image File Name S16430.jpg
Incandescent Equiv 50W
Indoor Outdoor Indoor
IP Rating IP20
Lamp Base Recessed Double Contact HO/VHO
Lamp Filament LED
Lamp Shape T8
Lamp Ballast Type A/B/C Type B
Lamp End Type Double Ended;Single Ended
Lens Finish Frost
Lens Material Plastic
Lumens 950L/1000L/900L
Material Polycarbonate (PC)
MOD Decimal In. 1.13
MOL Decimal In. 15.81
Nominal Length In. 18
NSF Approved ETL Sanitation listed (conforms to NSF)
Operating Frequency 50/60Hz
Operating Temp -20C (-4F) to +45C (+113F)
Order In Multiples Of 10
Power Factor 0.9
Rated For Enclosed Fixture Yes
Replaces S16412;S16413
RoHS Compliant Yes
Safety Listing cRUus - Recognized Component;cULus - Classified;ETLus - SANITATION RECOGNIZED COMPONENT
Location Rating Damp
SDS class LED_Lamp
Technology LED
Temperature (CCT) 4000K/5000K/6500K
THD 25%
Three-Way No
Tube Guard Use No
Volts 120V-277V
Watts 7W
Weight Lb. 0.26
