SATCO | SKU:
S16412
7T8/LED/HO-SIGN/18-840/BP

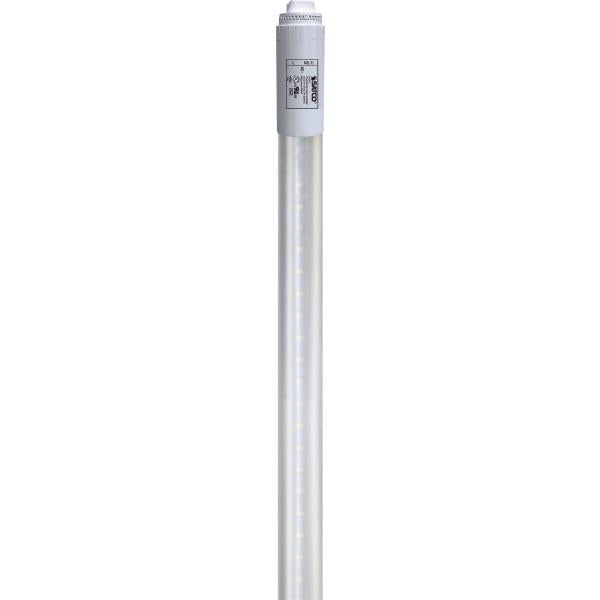

7 Watt T8 LED - 4000K - 950 Lumens - 120-277 Volt - Double Side LED - Type B - Ballast Bypass - Single Ended Wiring
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs - Ballast Bypass - Outdoor Sign
Brand SATCO
Amps 0.058-0.025A
ANSI Base R17d
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 360
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Cool White
CRI 83
Dimmable Non-Dimmable
DLC Approved No
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Frost
Product Type Linear
Flr Equiv 25W
Avg Rated Hours 50000
Housing Color White
Image File Name S16412.jpg
Incandescent Equiv 50W
Lamp Base Recessed Double Contact HO/VHO
Lamp Filament LED
Lamp Shape T8
Lamp Ballast Type A/B/C Type B
Lamp End Type Single Ended
Lensed Yes
Lens Finish Frost
Lens Material Nano
Lumens 950L
Material Plastic
MOD Decimal In. 1
MOL Decimal In. 15.88
Nominal Length In. 18
NSF Approved Yes
Operating Frequency 50/60Hz
Operating Temp -30C (-22F) to +45C (+113F)
Order In Multiples Of 10
Power Factor 0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
RoHS Compliant Yes
Safety Listing cRUus - Recognized Component;cULus - Certified;cULus - Classified;ETLus - SANITATION RECOGNIZED COMPONENT
Location Rating Damp
SDS class LED_Lamp
Technology LED
Temperature (CCT) 4000K
Three-Way No
Tube Guard Use Not Approved
Volts 120V-277V
Watts 7W
Weight Lb. 0.22
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs - Ballast Bypass - Outdoor Sign
Brand SATCO
Amps 0.058-0.025A
ANSI Base R17d
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 360
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Cool White
CRI 83
Dimmable Non-Dimmable
DLC Approved No
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Frost
Product Type Linear
Flr Equiv 25W
Avg Rated Hours 50000
Housing Color White
Image File Name S16412.jpg
Incandescent Equiv 50W
Lamp Base Recessed Double Contact HO/VHO
Lamp Filament LED
Lamp Shape T8
Lamp Ballast Type A/B/C Type B
Lamp End Type Single Ended
Lensed Yes
Lens Finish Frost
Lens Material Nano
Lumens 950L
Material Plastic
MOD Decimal In. 1
MOL Decimal In. 15.88
Nominal Length In. 18
NSF Approved Yes
Operating Frequency 50/60Hz
Operating Temp -30C (-22F) to +45C (+113F)
Order In Multiples Of 10
Power Factor 0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
RoHS Compliant Yes
Safety Listing cRUus - Recognized Component;cULus - Certified;cULus - Classified;ETLus - SANITATION RECOGNIZED COMPONENT
Location Rating Damp
SDS class LED_Lamp
Technology LED
Temperature (CCT) 4000K
Three-Way No
Tube Guard Use Not Approved
Volts 120V-277V
Watts 7W
Weight Lb. 0.22
