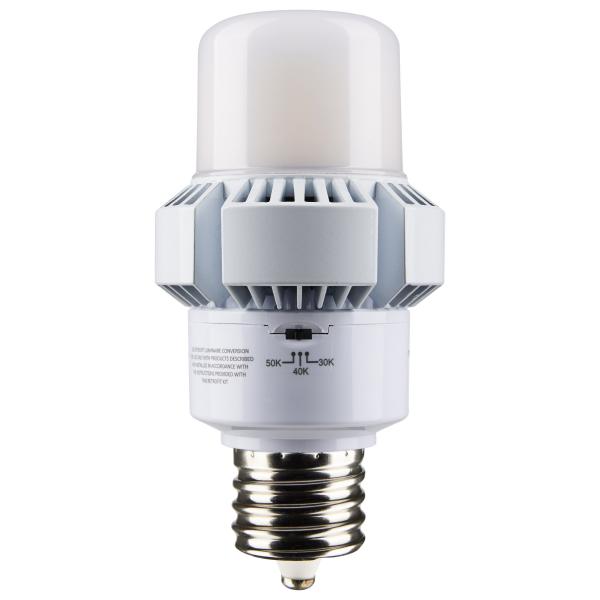

SATCO | SKU:
S13163
35W/AP28/LED/CCT/100-277V/EX39
35 Watt - A-Plus 28 - LED - CCT Selectable and Wattage Selectable - Extended Mogul base - Type B - Ballast Bypass - ColorQuick Technology - PowerQuick Technology
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand A-Plus
Amps 0.350-0.126/0.170-0.061A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 280
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
Color Temp Warm to Cool White
CRI 80
DLC Approved Yes
DLC Classification Standard
DLC ID S-B1AY6N
DLC Primary Use Replacement Lamps for Outdoor Pole/Arm-mounted Decorative Luminaires (Type B)
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Type A
Flr Equiv 85W
HID Equiv 100W-175W
Avg Rated Hours 50000
Housing Color White
Image File Name S13163.jpg
Incandescent Equiv 300W
Indoor Outdoor Indoor;Outdoor
IP Rating IP64
Lamp Base Mogul Extended
Lamp Filament LED
Lamp Shape AP28
Lamp Ballast Type A/B/C Type B
Lens Finish Frost
Lens Material Polycarbonate (PC)
Lumens 4550L/2380L
Material Aluminum
Minimum Compartment Size Length: 6 in. Width: 6 in. Height: 8.5 in.
MOD Decimal In. 3.39
MOL Decimal In. 6.54
Operating Frequency 50/60Hz
Operating Temp -22C (-30F) to +45C (+113F)
Order In Multiples Of 1
Power Factor >0.9
Product Notes Lumen/Watt/CCT Ratio Chart in Documents.
Rated For Enclosed Fixture Yes
Replaces S13104;S13105;S13106;S13107;S13108;S13109;S13110;S13111
RoHS Compliant Yes
Safety Listing cULus - Classified;cULus - Listed
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 2.5KV
Technology LED
Temperature (CCT) 3000K/4000K/5000K
THD 15%
Three-Way Yes
Volts 100V-277V
Watts 35W/17W
Weight Lb. 1.16
IOT Enabled No
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand A-Plus
Amps 0.350-0.126/0.170-0.061A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 280
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
Color Temp Warm to Cool White
CRI 80
DLC Approved Yes
DLC Classification Standard
DLC ID S-B1AY6N
DLC Primary Use Replacement Lamps for Outdoor Pole/Arm-mounted Decorative Luminaires (Type B)
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Type A
Flr Equiv 85W
HID Equiv 100W-175W
Avg Rated Hours 50000
Housing Color White
Image File Name S13163.jpg
Incandescent Equiv 300W
Indoor Outdoor Indoor;Outdoor
IP Rating IP64
Lamp Base Mogul Extended
Lamp Filament LED
Lamp Shape AP28
Lamp Ballast Type A/B/C Type B
Lens Finish Frost
Lens Material Polycarbonate (PC)
Lumens 4550L/2380L
Material Aluminum
Minimum Compartment Size Length: 6 in. Width: 6 in. Height: 8.5 in.
MOD Decimal In. 3.39
MOL Decimal In. 6.54
Operating Frequency 50/60Hz
Operating Temp -22C (-30F) to +45C (+113F)
Order In Multiples Of 1
Power Factor >0.9
Product Notes Lumen/Watt/CCT Ratio Chart in Documents.
Rated For Enclosed Fixture Yes
Replaces S13104;S13105;S13106;S13107;S13108;S13109;S13110;S13111
RoHS Compliant Yes
Safety Listing cULus - Classified;cULus - Listed
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 2.5KV
Technology LED
Temperature (CCT) 3000K/4000K/5000K
THD 15%
Three-Way Yes
Volts 100V-277V
Watts 35W/17W
Weight Lb. 1.16
IOT Enabled No
