SATCO | SKU:
S13154
152W/LED/HID-HB/840/120-277V/D

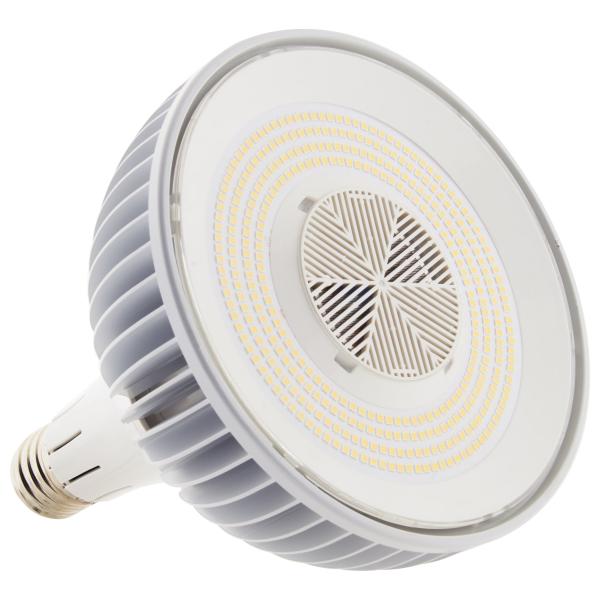

152 Watt - LED HID Replacement - 4K - EX39 - Type B Ballast Bypass - 120-277 Volt - Dimmable
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand SATCO
Amps 1.267-0.549A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 180
Burning Position Base Up
CCT Selectable No
CA Web Text Lawful for sale
Color Temp Cool White
CRI 82
DLC Approved Yes
DLC Classification Standard
DLC ID PNUQ2VIP
DLC Primary Use Replacement Lamps for High-Bay Luminaires (Type B)
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Hi-Bay Flood
Flr Equiv 250W
HID Equiv 750W
Avg Rated Hours 50000
Housing Color White
Image File Name S13154.jpg
Incandescent Equiv 1000W
Indoor Outdoor Indoor;Outdoor
Installation Notes Vertical Only
IP Rating IP40
Lamp Base Mogul Extended
Lamp Filament LED
Lamp Shape HB64
Lamp Ballast Type A/B/C Type B
Lensed Yes
Lens Finish Clear
Lens Material Glass
Lumens 25000L
Material Plastic
Minimum Compartment Size Diameter: 19.69 in. Height: 19.69 in.
MOD Decimal In. 7.91
MOL Decimal In. 9.33
NSF Approved Yes
Operating Frequency 50/60Hz
Operating Temp -40C (-40F) to +60C (+140F)
Power Factor 0.9
Rated For Enclosed Fixture Yes
RoHS Compliant Yes
Safety Listing cULus - Listed
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 6KV
Technology LED
Temperature (CCT) 4000K
THD 20%
Three-Way No
Volts 120V-277V
Watts 152W
Weight Lb. 3.3
IOT Enabled No
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand SATCO
Amps 1.267-0.549A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 180
Burning Position Base Up
CCT Selectable No
CA Web Text Lawful for sale
Color Temp Cool White
CRI 82
DLC Approved Yes
DLC Classification Standard
DLC ID PNUQ2VIP
DLC Primary Use Replacement Lamps for High-Bay Luminaires (Type B)
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Hi-Bay Flood
Flr Equiv 250W
HID Equiv 750W
Avg Rated Hours 50000
Housing Color White
Image File Name S13154.jpg
Incandescent Equiv 1000W
Indoor Outdoor Indoor;Outdoor
Installation Notes Vertical Only
IP Rating IP40
Lamp Base Mogul Extended
Lamp Filament LED
Lamp Shape HB64
Lamp Ballast Type A/B/C Type B
Lensed Yes
Lens Finish Clear
Lens Material Glass
Lumens 25000L
Material Plastic
Minimum Compartment Size Diameter: 19.69 in. Height: 19.69 in.
MOD Decimal In. 7.91
MOL Decimal In. 9.33
NSF Approved Yes
Operating Frequency 50/60Hz
Operating Temp -40C (-40F) to +60C (+140F)
Power Factor 0.9
Rated For Enclosed Fixture Yes
RoHS Compliant Yes
Safety Listing cULus - Listed
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 6KV
Technology LED
Temperature (CCT) 4000K
THD 20%
Three-Way No
Volts 120V-277V
Watts 152W
Weight Lb. 3.3
IOT Enabled No
