SATCO | SKU:
S13104
25WA23/LED/27K/100-277V/EX39

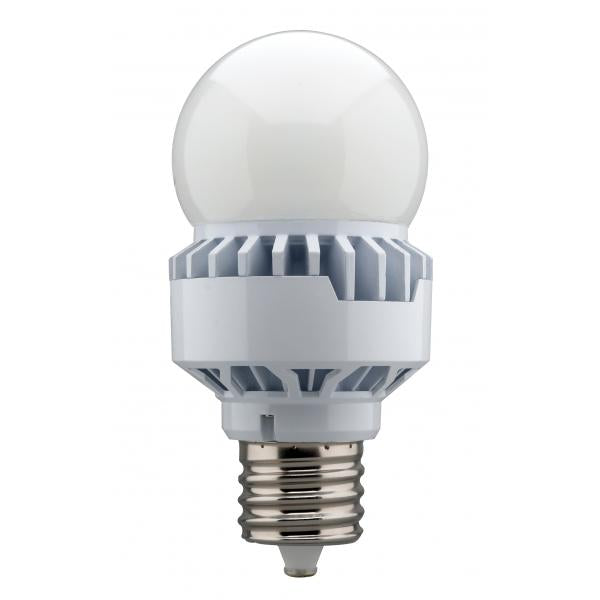

25 Watt LED A23 Hi-Pro HID Replacement - 2700K - Mogul extended base - Type B Ballast Bypass - 120-277 Volt
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand Hi-Pro
Amps 0.250-0.090A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 280
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Warm White
CRI 80
Dimmable Non-Dimmable
DLC Approved No
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Frost
Product Type Type A
HID Equiv 100W
Avg Rated Hours 50000
Housing Color White
Image File Name S13104.jpg
Incandescent Equiv 200W
Lamp Base Mogul Extended
Lamp Filament LED
Lamp Shape A23
Lamp Ballast Type A/B/C Type B
Lensed Yes
Lens Finish Frost
Lens Material Plastic (PS)
Lumens 3275L
Material Plastic
Minimum Compartment Size Diameter: 6 in. Height: 8.5 in.
MOD Decimal In. 3.22
MOL Decimal In. 6.66
Operating Frequency 50/60Hz
Operating Temp -25C (-13F) to +45C (+113F)
Order In Multiples Of 1
Power Factor >0.9
Rated For Enclosed Fixture Yes
RoHS Compliant Yes
Safety Listing cULus - Listed
Location Rating Damp
SDS class LED_Lamp
Technology LED
Temperature (CCT) 2700K
Three-Way No
Volts 100V-277V
Watts 25W
Weight Lb. 1.1
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand Hi-Pro
Amps 0.250-0.090A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 280
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Warm White
CRI 80
Dimmable Non-Dimmable
DLC Approved No
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Frost
Product Type Type A
HID Equiv 100W
Avg Rated Hours 50000
Housing Color White
Image File Name S13104.jpg
Incandescent Equiv 200W
Lamp Base Mogul Extended
Lamp Filament LED
Lamp Shape A23
Lamp Ballast Type A/B/C Type B
Lensed Yes
Lens Finish Frost
Lens Material Plastic (PS)
Lumens 3275L
Material Plastic
Minimum Compartment Size Diameter: 6 in. Height: 8.5 in.
MOD Decimal In. 3.22
MOL Decimal In. 6.66
Operating Frequency 50/60Hz
Operating Temp -25C (-13F) to +45C (+113F)
Order In Multiples Of 1
Power Factor >0.9
Rated For Enclosed Fixture Yes
RoHS Compliant Yes
Safety Listing cULus - Listed
Location Rating Damp
SDS class LED_Lamp
Technology LED
Temperature (CCT) 2700K
Three-Way No
Volts 100V-277V
Watts 25W
Weight Lb. 1.1
