SATCO | SKU:
S11970
13T8U6/LED/22.5-830/DUAL

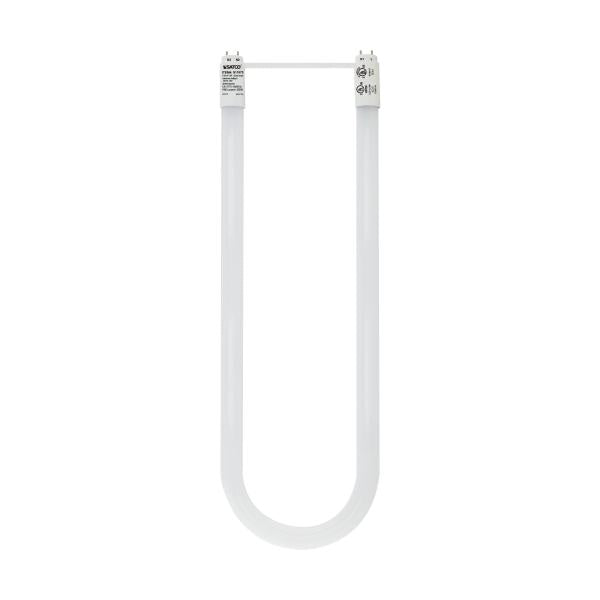

13 Watt T8 U-Bend LED - 50000 Hours - Medium bi-pin base - 1900 Lumens - 3000K - Type A/B - Ballast Dependent or Ballast Bypass - Single or Double Ended Wiring
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs
Brand SATCO
Amps .15A with Electronic Ballast; .12A Ballast Bypass
ANSI Base G13
Ballast Bypass Direct Dual
Ballasting Requirements Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread 160
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Warm White
CRI 83
Dimmable Yes-Dimmable
Dimmable Function Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved Yes
DLC Classification Standard
DLC ID PLT0HYEACRK2
DLC Primary Use Replacement Lamps (plug and play) (UL Type A)
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Frost
Product Type U-Bend
Flr Equiv 32W
Avg Rated Hours 50000
Housing Color White
Image File Name S11970.jpg
Incandescent Equiv 50W
Installation Notes Direct replacement for 32W/23T8/U6 lamps only
IP Rating IP20
Lamp Base Medium Bi Pin
Lamp Filament LED
Lamp Shape T8
Lamp Ballast Type A/B/C Type A/B
Lamp End Type Double Ended;Single Ended
Leg Spacing In. 6
Lens Finish Frost
Lens Material Plastic (PS)
Lumens 1900L
Material Plastic
MOD Decimal In. 1.1
MOL Decimal In. 22.59
Nominal Length In. 22.5
NSF Approved ETL Sanitation listed (conforms to NSF)
Operating Frequency 50/60Hz
Operating Temp -25C (-13F) to +45C (+113F)
Power Factor 0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
Replaces S9294;S9994
RoHS Compliant Yes
Safety Listing cULus - Classified;cULus - Listed;ETLus - SANITATION RECOGNIZED COMPONENT
Location Rating Damp
SDS class LED_Lamp
Shatter Proof Type Yes
Surge Protection Built-in surge protection - 1KV
Technology LED
Temperature (CCT) 3000K
THD 20%
Three-Way No
Tube Guard Use Yes
Volts 120V-277V
Watts 13W
Weight Lb. 0.91
IOT Enabled No
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs
Brand SATCO
Amps .15A with Electronic Ballast; .12A Ballast Bypass
ANSI Base G13
Ballast Bypass Direct Dual
Ballasting Requirements Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread 160
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Warm White
CRI 83
Dimmable Yes-Dimmable
Dimmable Function Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved Yes
DLC Classification Standard
DLC ID PLT0HYEACRK2
DLC Primary Use Replacement Lamps (plug and play) (UL Type A)
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Frost
Product Type U-Bend
Flr Equiv 32W
Avg Rated Hours 50000
Housing Color White
Image File Name S11970.jpg
Incandescent Equiv 50W
Installation Notes Direct replacement for 32W/23T8/U6 lamps only
IP Rating IP20
Lamp Base Medium Bi Pin
Lamp Filament LED
Lamp Shape T8
Lamp Ballast Type A/B/C Type A/B
Lamp End Type Double Ended;Single Ended
Leg Spacing In. 6
Lens Finish Frost
Lens Material Plastic (PS)
Lumens 1900L
Material Plastic
MOD Decimal In. 1.1
MOL Decimal In. 22.59
Nominal Length In. 22.5
NSF Approved ETL Sanitation listed (conforms to NSF)
Operating Frequency 50/60Hz
Operating Temp -25C (-13F) to +45C (+113F)
Power Factor 0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
Replaces S9294;S9994
RoHS Compliant Yes
Safety Listing cULus - Classified;cULus - Listed;ETLus - SANITATION RECOGNIZED COMPONENT
Location Rating Damp
SDS class LED_Lamp
Shatter Proof Type Yes
Surge Protection Built-in surge protection - 1KV
Technology LED
Temperature (CCT) 3000K
THD 20%
Three-Way No
Tube Guard Use Yes
Volts 120V-277V
Watts 13W
Weight Lb. 0.91
IOT Enabled No
