SATCO | SKU:
S11909
7W/LED/T5/865/BP

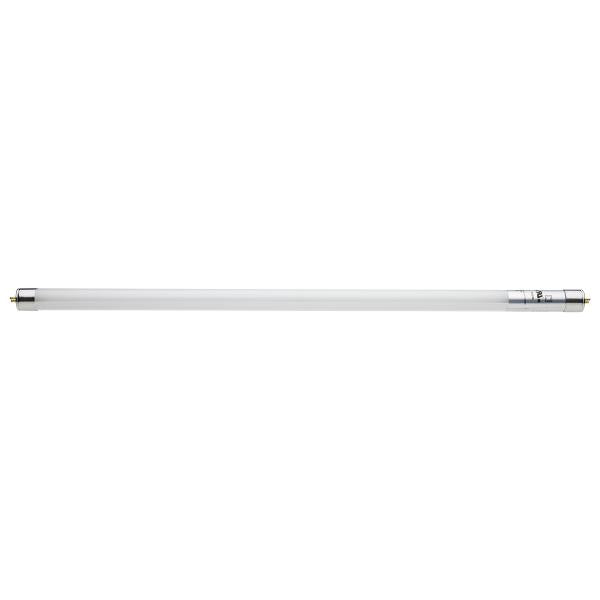

7 Watt T5 LED - Miniature bi-pin base - 6500K - 50000 Average rated hours - 700 Lumens - 120-277 Volt - Type B - Ballast Bypass - Double Ended Wiring
UNSPSC 39101628
Warranty 5 Year Limited - T5 LED Bulbs - Ballast Bypass
Brand SATCO
Additional Info Replaces F13T5/D lamps
Amps 0.058-0.025A
ANSI Base G5
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements No ballast or external driver required
Beam Spread 240
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Daylight
CRI 82
Dimmable Non-Dimmable
DLC Approved No
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Frost
Product Type Linear
Flr Equiv 13W
Avg Rated Hours 50000
Image File Name S11909.jpg
Incandescent Equiv 50W
Installation Notes Direct wire 120-277V line voltage; Double ended wiring
Lamp Base Miniature Bi Pin
Lamp Filament LED
Lamp Shape T5
Lamp Ballast Type A/B/C Type B
Lamp End Type Double Ended
Lensed Yes
Lens Finish Frost
Lumens 700L
Material Glass
MOD Decimal In. 0.83
MOL Decimal In. 20.91
Nominal Length In. 21
NSF Approved Yes
Operating Frequency 50/60Hz
Operating Temp -25C (-13F) to +45C (+113F)
Power Factor 0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
RoHS Compliant Yes
Safety Listing cULus - Certified;cULus - Classified;ETLus - SANITATION RECOGNIZED COMPONENT
Location Rating Damp
SDS class LED_Lamp
Shatter Proof Type PET Coated
Technology LED
Temperature (CCT) 6500K
THD 20%
Three-Way No
Volts 120V-277V
Watts 7W
Weight Lb. 0.13
UNSPSC 39101628
Warranty 5 Year Limited - T5 LED Bulbs - Ballast Bypass
Brand SATCO
Additional Info Replaces F13T5/D lamps
Amps 0.058-0.025A
ANSI Base G5
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements No ballast or external driver required
Beam Spread 240
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Daylight
CRI 82
Dimmable Non-Dimmable
DLC Approved No
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish Frost
Product Type Linear
Flr Equiv 13W
Avg Rated Hours 50000
Image File Name S11909.jpg
Incandescent Equiv 50W
Installation Notes Direct wire 120-277V line voltage; Double ended wiring
Lamp Base Miniature Bi Pin
Lamp Filament LED
Lamp Shape T5
Lamp Ballast Type A/B/C Type B
Lamp End Type Double Ended
Lensed Yes
Lens Finish Frost
Lumens 700L
Material Glass
MOD Decimal In. 0.83
MOL Decimal In. 20.91
Nominal Length In. 21
NSF Approved Yes
Operating Frequency 50/60Hz
Operating Temp -25C (-13F) to +45C (+113F)
Power Factor 0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
RoHS Compliant Yes
Safety Listing cULus - Certified;cULus - Classified;ETLus - SANITATION RECOGNIZED COMPONENT
Location Rating Damp
SDS class LED_Lamp
Shatter Proof Type PET Coated
Technology LED
Temperature (CCT) 6500K
THD 20%
Three-Way No
Volts 120V-277V
Watts 7W
Weight Lb. 0.13
