SATCO | SKU:
S11827
12WLED/DW/EL/6/CCT-SEL/RND/RD

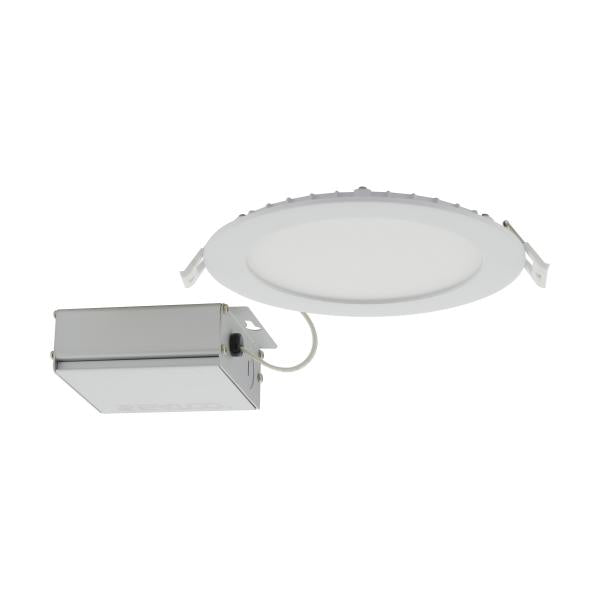

12 Watt - LED Direct Wire Downlight - Edge-lit - 6 inch - CCT Selectable - 120 volt - Dimmable - Round - Remote Driver
UNSPSC: 39111515
Warranty: 5 Year Limited - Fixtures
Brand: SATCO
Additional Info: Candlepower: 300
Air Tight: Yes
Beam Spread: 108
Bulb Included: Integrated
CA Prop 65: Lead
Can Size: 6 in.
CCT Selectable: Yes
CA Web Text: California T24 Listed
Ceiling Aperture: 6.18 in. Cutout
Clearance Height: 2
Color Temp: Warm to Cool White
Connection: Direct Wired
CRI: 90
Diameter In.: 6.78
Dimension String: H:0.90" DIA:6.78"
Dimmable: Yes-Dimmable
DLC Approved: No
ENERGY STAR: Yes
ES Unique ID: ESID-2369681
ES Category: Downlight Recessed
FCC Compliant: Yes
Finish: White
Finish Family: White
Fixture shape: Round
Product Type: Direct Wire LED Downlight
Has Driver: Yes
Height In.: 0.9
Avg Rated Hours: 50000
IC Rated: Yes
Incandescent Equiv: 65W
Indoor Outdoor: Indoor
Installation Notes: **If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
IP Rating: IP20
Lamp Base: Integrated
Lamp Shape: Integrated LED
Lens Finish: Frost
Lens Material: Poly methyl methacrylate (PMMA)
Lumens: 900L
Material: Aluminum
Max Dry Wall Thickness (In.): 1/2 in.
Mounting Procedure: Ceiling
Operating Frequency: 60Hz
Operating Temp: -20C (-4F) to +45C (+113F)
Power Factor: >0.9
Rec Spacing Between Fixtures: 4 ft. to 6 ft.
Replaceable Light Source: No
Replaces: S11603
RoHS Compliant: Yes
Safety Listing: cETLus - Listed
Location Rating: Wet
SDS class: LED_Lamp
Sloped Ceiling Compatible: No
Style: Utility
Technology: LED
Temperature (CCT): 2700K/3000K/3500K/4000K/5000K
THD: <20%
Trim Color: White
Volts: 120V
Watts: 12W
Wattage Selectable: No
Weight Lb.: 1
