SATCO | SKU:
S11766
14T8/LED/48-5CCT/BP/SE-DE

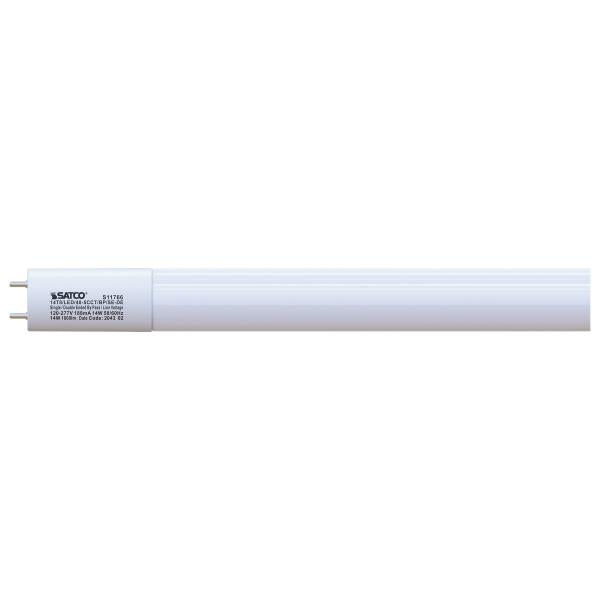

14 Watt - 4 Foot LED - T8 - CCT Selectable - Type B Ballast Bypass - G13 Base - 120-277 Volt
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs - Ballast Bypass
Brand SATCO
Additional Info Non CCT Selectable options are S39913-S39916
Amps 0.117-0.051A
ANSI Base G13
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 210
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
Color Temp Warm White to Daylight
CRI 80
DLC Approved Yes
DLC Classification Standard
DLC ID S-9MV7GT
DLC Primary Use Internal Driver/Line Voltage (UL Type B) Lamps
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Linear
Flr Equiv 32W
Avg Rated Hours 50000
Housing Color White
Image File Name S11766.jpg
Incandescent Equiv 75W
Lamp Base Medium Bi Pin
Lamp Filament LED
Lamp Shape T8
Lamp Ballast Type A/B/C Type B
Lamp End Type Double Ended;Single Ended
Lens Finish Frost
Lens Material Glass
Lumens 1700L/1700L/1800L/1800L/1800L
Material Glass / Plastic
MOD Decimal In. 1
MOL Decimal In. 47.17
Nominal Length In. 48
NSF Approved Yes
Operating Frequency 50/60Hz
Operating Temp -20C (-4F) to +45C (+113F)
Order In Multiples Of 25
Power Factor 0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
Replaces S11929;S11969
RoHS Compliant Yes
Safety Listing cULus - Classified
Location Rating Damp
SDS class LED_Lamp
Technology LED
Temperature (CCT) 3000K/3500K/4000K/5000K/6500K
THD <25%
Three-Way No
Volts 120V-277V
Watts 14W
Weight Lb. 0.45
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs - Ballast Bypass
Brand SATCO
Additional Info Non CCT Selectable options are S39913-S39916
Amps 0.117-0.051A
ANSI Base G13
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 210
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
Color Temp Warm White to Daylight
CRI 80
DLC Approved Yes
DLC Classification Standard
DLC ID S-9MV7GT
DLC Primary Use Internal Driver/Line Voltage (UL Type B) Lamps
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Linear
Flr Equiv 32W
Avg Rated Hours 50000
Housing Color White
Image File Name S11766.jpg
Incandescent Equiv 75W
Lamp Base Medium Bi Pin
Lamp Filament LED
Lamp Shape T8
Lamp Ballast Type A/B/C Type B
Lamp End Type Double Ended;Single Ended
Lens Finish Frost
Lens Material Glass
Lumens 1700L/1700L/1800L/1800L/1800L
Material Glass / Plastic
MOD Decimal In. 1
MOL Decimal In. 47.17
Nominal Length In. 48
NSF Approved Yes
Operating Frequency 50/60Hz
Operating Temp -20C (-4F) to +45C (+113F)
Order In Multiples Of 25
Power Factor 0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
Replaces S11929;S11969
RoHS Compliant Yes
Safety Listing cULus - Classified
Location Rating Damp
SDS class LED_Lamp
Technology LED
Temperature (CCT) 3000K/3500K/4000K/5000K/6500K
THD <25%
Three-Way No
Volts 120V-277V
Watts 14W
Weight Lb. 0.45
