SATCO | SKU:
S11760
10T8/LED/24-CCT/DM/BP-DR

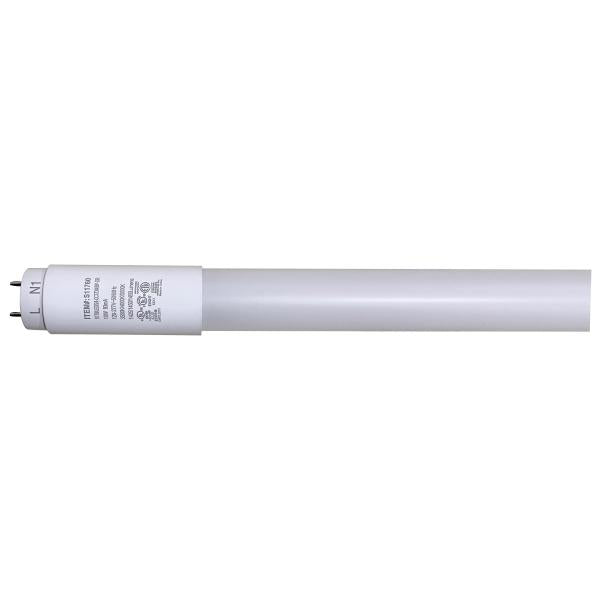

10 Watt T8 LED - CCT Selectable - Medium bi-pin base - 50000 Hours - Type A/B - Ballast Bypass or Direct Replacement - Single or Double Ended Wiring - Glass with PET coating
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs
Brand SATCO
Amps 0.083-0.036A
ANSI Base G13
Ballast Bypass Direct Dual
Ballasting Requirements Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread 180
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
Color Temp Neutral White to Natural Light
CRI 83
Dimmable Yes-Dimmable
Dimmable Function Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved Yes
DLC Classification Standard
DLC ID S-I8R2WN
DLC Primary Use Dual Mode Internal Driver (UL Type A and Type B)
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Linear
Flr Equiv 32W/30W/28W/25W
Avg Rated Hours 50000
Housing Color White
Image File Name S11760.jpg
Incandescent Equiv 125W
IP Rating IP20
Lamp Base Medium Bi Pin
Lamp Filament LED
Lamp Shape T8
Lamp Ballast Type A/B/C Type A/B
Lamp End Type Double Ended;Single Ended
Lens Finish Frost
Lens Material Glass
Lumens 1425L/1450L/1450L
Material Glass / Plastic
MOD Decimal In. 1
MOL Decimal In. 23.78
Nominal Length In. 24
NSF Approved Yes
Operating Frequency 50/60Hz
Operating Temp -20C (-4F) to +45C (+113F)
Order In Multiples Of 25
Power Factor 0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
RoHS Compliant Yes
Safety Listing cETLus - Listed;cULus - Classified;cULus - Listed
Location Rating Damp
SDS class LED_Lamp
Shatter Proof Type PET Coated
Technology LED
Temperature (CCT) 3500K/4000K/5000K
Three-Way No
Volts 120V-277V
Watts 10W
Weight Lb. 0.33
IOT Enabled No
UNSPSC 39101628
Warranty 5 Year Limited - T8 LED Bulbs
Brand SATCO
Amps 0.083-0.036A
ANSI Base G13
Ballast Bypass Direct Dual
Ballasting Requirements Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread 180
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
Color Temp Neutral White to Natural Light
CRI 83
Dimmable Yes-Dimmable
Dimmable Function Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved Yes
DLC Classification Standard
DLC ID S-I8R2WN
DLC Primary Use Dual Mode Internal Driver (UL Type A and Type B)
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Linear
Flr Equiv 32W/30W/28W/25W
Avg Rated Hours 50000
Housing Color White
Image File Name S11760.jpg
Incandescent Equiv 125W
IP Rating IP20
Lamp Base Medium Bi Pin
Lamp Filament LED
Lamp Shape T8
Lamp Ballast Type A/B/C Type A/B
Lamp End Type Double Ended;Single Ended
Lens Finish Frost
Lens Material Glass
Lumens 1425L/1450L/1450L
Material Glass / Plastic
MOD Decimal In. 1
MOL Decimal In. 23.78
Nominal Length In. 24
NSF Approved Yes
Operating Frequency 50/60Hz
Operating Temp -20C (-4F) to +45C (+113F)
Order In Multiples Of 25
Power Factor 0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
RoHS Compliant Yes
Safety Listing cETLus - Listed;cULus - Classified;cULus - Listed
Location Rating Damp
SDS class LED_Lamp
Shatter Proof Type PET Coated
Technology LED
Temperature (CCT) 3500K/4000K/5000K
Three-Way No
Volts 120V-277V
Watts 10W
Weight Lb. 0.33
IOT Enabled No
