SATCO | SKU:
S11629
12WLED/DW/GBL/3/930/SQ/RD/BN

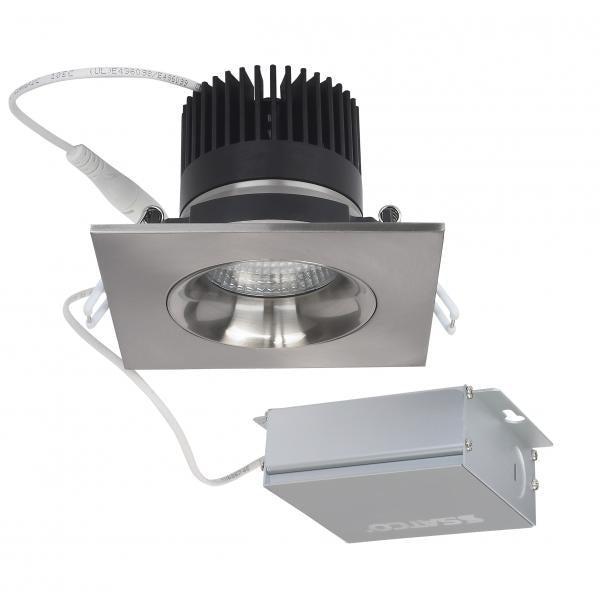

12 watt LED Direct Wire Downlight - Gimbaled - 3.5 inch - 3000K - 120 volt - Dimmable - Square - Remote Driver - Brushed Nickel
UNSPSC: 39111515
Warranty: 5 Year Limited - Fixtures
Brand: SPRINT
Additional Info: Integrated j-box for direct wire installation
Air Tight: Yes
ANSI Base: Integrated
Beam Spread: 40
Bulb Included: Integrated
CA Prop 65: Lead
CCT Selectable: No
CA Web Text: California T24 Listed
Ceiling Aperture: 3.5625 in. Cutout
Clearance Height: 4
Color Temp: Warm White
Connection: Direct Wired
CRI: 90
Dimension String: L:4.38" W:4.38" H:3.00"
Dimmable: Yes-Dimmable
DLC Approved: No
ENERGY STAR: Yes
ES Unique ID: ESID-2337201
ES Category: Downlight Recessed
FCC Compliant: Yes
Finish: Brushed Nickel
Finish Family: Nickel
Fixture shape: Square
Product Type: Remote Driver LED Downlight
Has Driver: Yes
Height In.: 3
Avg Rated Hours: 50000
IC Rated: Yes
Incandescent Equiv: 75W
Indoor Outdoor: Indoor
Installation Notes: **If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
Lamp Base: Integrated
Lamp Shape: Integrated LED
Length In.: 4.38
Lens Finish: Clear
Lens Material: Polycarbonate (PC) and Glass
Lumens: 840L
Material: Aluminum
Max Dry Wall Thickness (In.): 7/8 in.
Mounting Procedure: Ceiling
Operating Frequency: 60Hz
Operating Temp: -20C (-4F) to +45C (+113F)
Power Factor: >0.9
Rec Spacing Between Fixtures: 4 ft. to 6 ft.
Replaceable Light Source: No
RoHS Compliant: Yes
Safety Listing: cETLus - Listed
Location Rating: Wet
SDS class: LED_Lamp
Sloped Ceiling Compatible: Yes
Style: Utility
Technology: LED
Temperature (CCT): 3000K
Trim Color: Brushed Nickel
UL Application: Ceiling
Volts: 120V
Watts: 12W
Wattage Selectable: No
Weight Lb.: 1.39
Width In.: 4.38
UNSPSC: 39111515
Warranty: 5 Year Limited - Fixtures
Brand: SPRINT
Additional Info: Integrated j-box for direct wire installation
Air Tight: Yes
ANSI Base: Integrated
Beam Spread: 40
Bulb Included: Integrated
CA Prop 65: Lead
CCT Selectable: No
CA Web Text: California T24 Listed
Ceiling Aperture: 3.5625 in. Cutout
Clearance Height: 4
Color Temp: Warm White
Connection: Direct Wired
CRI: 90
Dimension String: L:4.38" W:4.38" H:3.00"
Dimmable: Yes-Dimmable
DLC Approved: No
ENERGY STAR: Yes
ES Unique ID: ESID-2337201
ES Category: Downlight Recessed
FCC Compliant: Yes
Finish: Brushed Nickel
Finish Family: Nickel
Fixture shape: Square
Product Type: Remote Driver LED Downlight
Has Driver: Yes
Height In.: 3
Avg Rated Hours: 50000
IC Rated: Yes
Incandescent Equiv: 75W
Indoor Outdoor: Indoor
Installation Notes: **If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
Lamp Base: Integrated
Lamp Shape: Integrated LED
Length In.: 4.38
Lens Finish: Clear
Lens Material: Polycarbonate (PC) and Glass
Lumens: 840L
Material: Aluminum
Max Dry Wall Thickness (In.): 7/8 in.
Mounting Procedure: Ceiling
Operating Frequency: 60Hz
Operating Temp: -20C (-4F) to +45C (+113F)
Power Factor: >0.9
Rec Spacing Between Fixtures: 4 ft. to 6 ft.
Replaceable Light Source: No
RoHS Compliant: Yes
Safety Listing: cETLus - Listed
Location Rating: Wet
SDS class: LED_Lamp
Sloped Ceiling Compatible: Yes
Style: Utility
Technology: LED
Temperature (CCT): 3000K
Trim Color: Brushed Nickel
UL Application: Ceiling
Volts: 120V
Watts: 12W
Wattage Selectable: No
Weight Lb.: 1.39
Width In.: 4.38
