INTERMATIC INC | SKU:
3090900

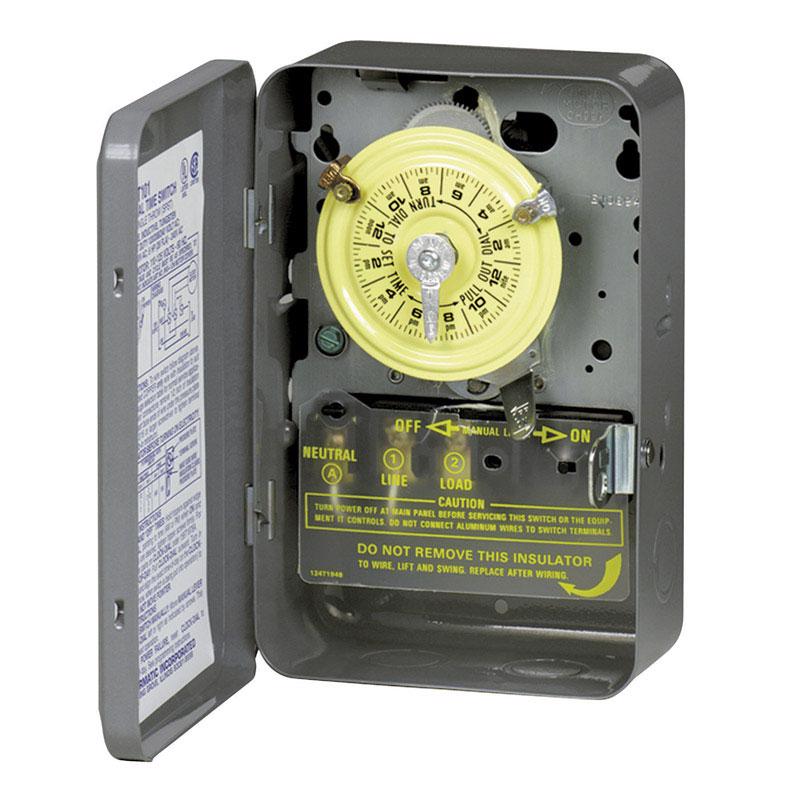

DIALTIMER 24HR INDOOR
Number in Package: 1
Packaging Type: Boxed
Product Type: 24 Hour Mechanical Timer
Programmable: Yes
UL Listed: Yes
Volts: 120
Brand Name: Intermatic
Color: Gray
CSA Listed: Yes
Sub Brand:
Cycles:
Application: CFL, LED and Incandescent
Amps:
Indoor or Outdoor: Indoor
Watts: 3
Warranty: 1 year Resistive Load Ratings Ranges: 40 A, 120-240 VAC, 60 Hz
Electronic Ballast Load Ratings Ranges: 16 A, 120 VAC
Knockout Dimensions Back: (2) Combination 1/2 in. - 3/4 in.
Pilot Duty Load Ratings Ranges: 1000 VA, 120-240 VAC, 60 Hz
Operating Temperature Min - Maximum: -40 - 130 degree Fahrenheit
Depth: 3 7/16 in.
Height: 7 7/8 in.
Width: 5 1/8 in.
Wire Size Minimum: No. 14 AWG
Wire Size Maximum: No. 8 AWG
Knockout Dimensions Left: (1) Combination 1/2 in. - 3/4 in.
Tungsten Ranges: 40 A, 120-240 VAC, 60 Hz
Electronic Ballast: 16 A
Inductive: 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Motor: 2 HP, 24 FLA 120 VAC, 60 Hz;5 HP, 28 FLA 240 VAC, 60 Hz
Packaging Type: Boxed
Product Type: 24 Hour Mechanical Timer
Programmable: Yes
UL Listed: Yes
Volts: 120
Brand Name: Intermatic
Color: Gray
CSA Listed: Yes
Sub Brand:
Cycles:
Application: CFL, LED and Incandescent
Amps:
Indoor or Outdoor: Indoor
Watts: 3
Warranty: 1 year Resistive Load Ratings Ranges: 40 A, 120-240 VAC, 60 Hz
Electronic Ballast Load Ratings Ranges: 16 A, 120 VAC
Knockout Dimensions Back: (2) Combination 1/2 in. - 3/4 in.
Pilot Duty Load Ratings Ranges: 1000 VA, 120-240 VAC, 60 Hz
Operating Temperature Min - Maximum: -40 - 130 degree Fahrenheit
Depth: 3 7/16 in.
Height: 7 7/8 in.
Width: 5 1/8 in.
Wire Size Minimum: No. 14 AWG
Wire Size Maximum: No. 8 AWG
Knockout Dimensions Left: (1) Combination 1/2 in. - 3/4 in.
Tungsten Ranges: 40 A, 120-240 VAC, 60 Hz
Electronic Ballast: 16 A
Inductive: 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Motor: 2 HP, 24 FLA 120 VAC, 60 Hz;5 HP, 28 FLA 240 VAC, 60 Hz
DIALTIMER 24HR INDOOR
$64.99
