INTERMATIC INC | SKU:
3000767

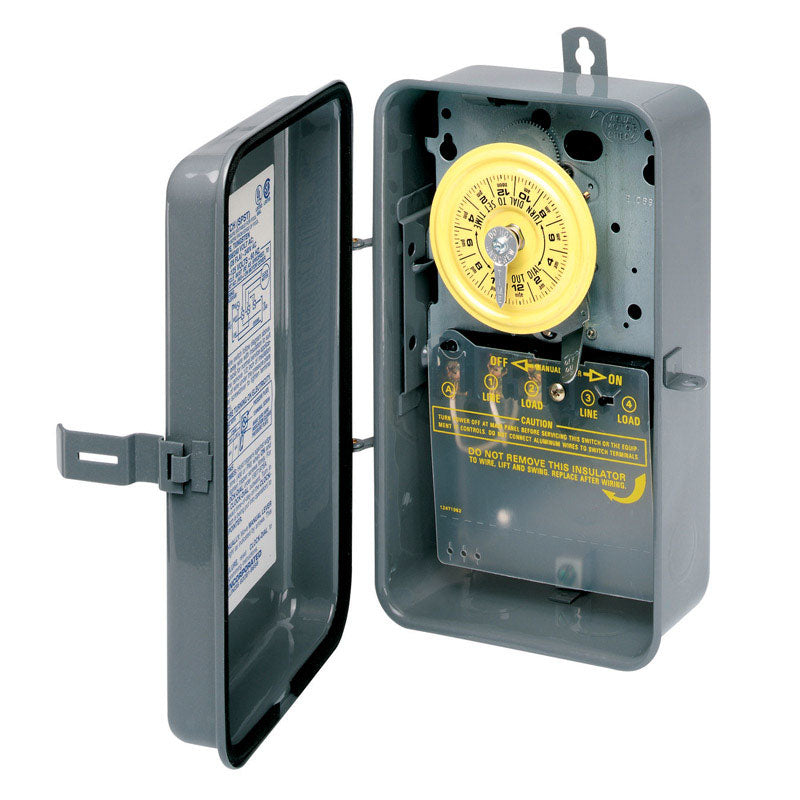

MECH TIMR SWTCH RAINTGHT
Number in Package: 1
Packaging Type: Boxed
Product Type: Mechanical Timer Switch
Programmable: Yes
UL Listed: Yes
Volts: 120
Brand Name: Intermatic
Color: Gray
CSA Listed: Yes
Sub Brand:
Cycles: 24
Application:
Amps:
Indoor or Outdoor: Indoor and Outdoor
Watts: 3
Warranty: 1 year Switch Type: SPST
Maximum Operating Temperature: 130 deg F.
Minimum Operating Temperature: 40 deg F.
Depth: 3-5/8 in.
Height: 10-1/8 in.
Width: 6-1/2 in.
Frequency: 60 Hz
Minimum Wire Size: #14 AWG
Maximum Wire Size: #8 AWG
Wiring Option: Terminals
Number of Circuits: 1
Knockout Dimensions Bottom: (2) Combination 1/2 in. - 3/4 in.
Knockout Dimensions Back/Side: (1) Combination 1/2 in. - 3/4 in.
Electronic Ballast: 16 A
Inductive: 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Motor: 2 HP, 24 FLA 120 VAC, 60 Hz;5 HP, 28 FLA 240 VAC, 60 Hz
Resistive Ranges: 40 A, 120-240 VAC, 60 Hz
Inductive Range: 40 A, 120-240 VAC, 60 Hz
Pilot Duty Ranges: 1000 VA, 120-240 VAC, 60 Hz
Packaging Type: Boxed
Product Type: Mechanical Timer Switch
Programmable: Yes
UL Listed: Yes
Volts: 120
Brand Name: Intermatic
Color: Gray
CSA Listed: Yes
Sub Brand:
Cycles: 24
Application:
Amps:
Indoor or Outdoor: Indoor and Outdoor
Watts: 3
Warranty: 1 year Switch Type: SPST
Maximum Operating Temperature: 130 deg F.
Minimum Operating Temperature: 40 deg F.
Depth: 3-5/8 in.
Height: 10-1/8 in.
Width: 6-1/2 in.
Frequency: 60 Hz
Minimum Wire Size: #14 AWG
Maximum Wire Size: #8 AWG
Wiring Option: Terminals
Number of Circuits: 1
Knockout Dimensions Bottom: (2) Combination 1/2 in. - 3/4 in.
Knockout Dimensions Back/Side: (1) Combination 1/2 in. - 3/4 in.
Electronic Ballast: 16 A
Inductive: 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Motor: 2 HP, 24 FLA 120 VAC, 60 Hz;5 HP, 28 FLA 240 VAC, 60 Hz
Resistive Ranges: 40 A, 120-240 VAC, 60 Hz
Inductive Range: 40 A, 120-240 VAC, 60 Hz
Pilot Duty Ranges: 1000 VA, 120-240 VAC, 60 Hz
MECH TIMR SWTCH RAINTGHT
$94.99
Unit price
/
Unavailable
