SATCO | SKU:
S28938R1
110W/LED/HID/SB/3CCT/EX39

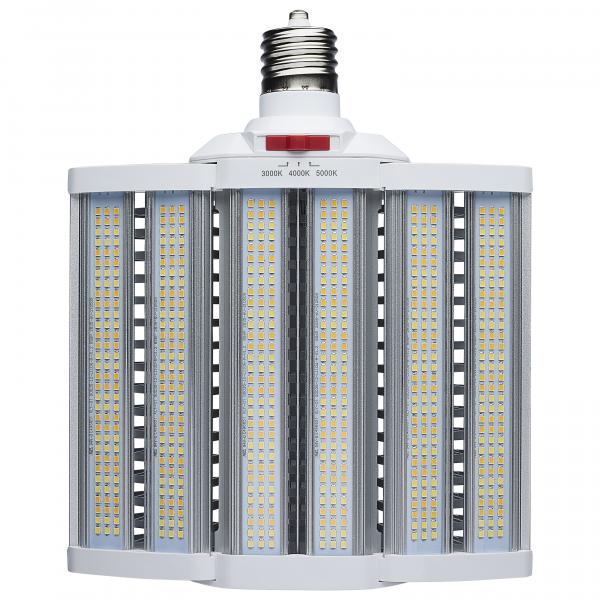

LED Shoe Box Lamp - 90/100/110 Wattage Selectable - 3K/4K/5K CCT Selectable - 120-277 Volt - White Finish
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand SATCO
Amps 0.750-0.325/0.833-0.361/0.917-0.397A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Beam Spread 180
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
CRI 80
Dimmable Yes-Dimmable
DLC Approved Yes
DLC Classification Standard
DLC ID S-7KJXW6
DLC Primary Use Replacement Lamps for Outdoor Pole/Arm-Mounted Area and Roadway Luminaires (Type B)
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
HID Equiv 250W/320W/400W
Avg Rated Hours 50000
Image File Name S28938R1.jpg
Incandescent Equiv 750W
Lamp Base Mogul Extended
Lamp Shape Integrated LED
Lamp Ballast Type A/B/C Type B
Lens Material Polycarbonate (PC)
Lumens 13500L/14500L/15400L
Material Aluminum
Minimum Compartment Size Length: 11 in. Width: 11 in. Height: 11.6 in.
MOD Decimal In. 8.9
MOL Decimal In. 11.26
Operating Frequency 50/60Hz
Operating Temp -30C (-22F) to +45C (+113F)
Power Factor >0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
Replaces S28937;S28938
RoHS Compliant Yes
Safety Listing cULus - Classified;cULus - Listed
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 4KV
Technology LED
Temperature (CCT) 3000K/4000K/5000K
THD <20%
Three-Way Yes
Volts 120V-277V
Watts 90W/100W/110W
Weight Lb. 3.68
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand SATCO
Amps 0.750-0.325/0.833-0.361/0.917-0.397A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Beam Spread 180
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
CRI 80
Dimmable Yes-Dimmable
DLC Approved Yes
DLC Classification Standard
DLC ID S-7KJXW6
DLC Primary Use Replacement Lamps for Outdoor Pole/Arm-Mounted Area and Roadway Luminaires (Type B)
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
HID Equiv 250W/320W/400W
Avg Rated Hours 50000
Image File Name S28938R1.jpg
Incandescent Equiv 750W
Lamp Base Mogul Extended
Lamp Shape Integrated LED
Lamp Ballast Type A/B/C Type B
Lens Material Polycarbonate (PC)
Lumens 13500L/14500L/15400L
Material Aluminum
Minimum Compartment Size Length: 11 in. Width: 11 in. Height: 11.6 in.
MOD Decimal In. 8.9
MOL Decimal In. 11.26
Operating Frequency 50/60Hz
Operating Temp -30C (-22F) to +45C (+113F)
Power Factor >0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
Replaces S28937;S28938
RoHS Compliant Yes
Safety Listing cULus - Classified;cULus - Listed
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 4KV
Technology LED
Temperature (CCT) 3000K/4000K/5000K
THD <20%
Three-Way Yes
Volts 120V-277V
Watts 90W/100W/110W
Weight Lb. 3.68
