SATCO | SKU:
S28932R1
80W/LED/HID/SB/3CCT/EX39

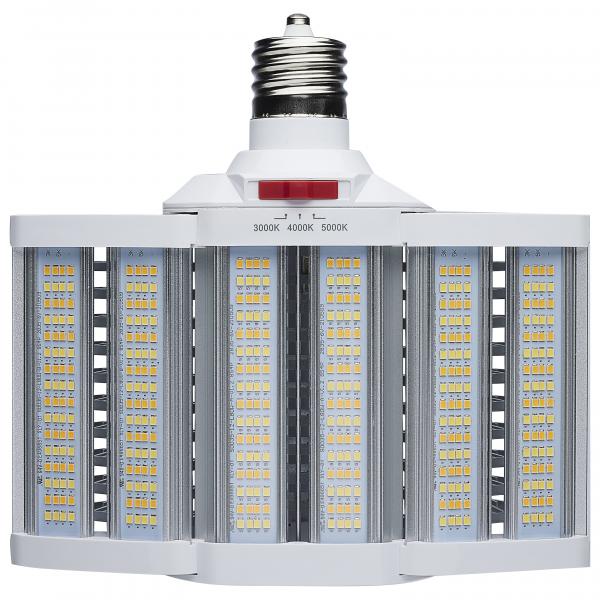

LED Shoe Box Lamp - 60/70/80 Wattage Selectable - 3K/4K/5K CCT Selectable - 120-277 Volt - White Finish
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand SATCO
Amps 0.500-0.217/0.583-0.253/0.667-0.289A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Beam Spread 180
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
CO Terse Lawful for sale
CRI 80
Dimmable Yes-Dimmable
DLC Approved Yes
DLC Classification Standard
DLC ID S-ARHCWO
DLC Primary Use Replacement Lamps for Outdoor Pole/Arm-Mounted Area and Roadway Luminaires (Type B)
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
HID Equiv 200W/250W/320W
Avg Rated Hours 50000
Image File Name S28932R1.jpg
Incandescent Equiv 400W
Lamp Base Mogul Extended
Lamp Shape Integrated LED
Lamp Ballast Type A/B/C Type B
Lens Material Polycarbonate (PC)
Lumens 9000L/10150L/11200L
Material Aluminum
Minimum Compartment Size Length: 11 in. Width: 11 in. Height: 9.2 in.
MOD Decimal In. 8.9
MOL Decimal In. 8.86
Operating Frequency 50/60Hz
Operating Temp -30C (-22F) to +45C (+113F)
Power Factor >0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
Replaces S28931;S28932
RoHS Compliant Yes
Safety Listing cULus - Classified;cULus - Listed
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 4KV
Technology LED
Temperature (CCT) 3000K/4000K/5000K
THD <20%
Three-Way Yes
Volts 120V-277V
Watts 60W/70W/80W
Weight Lb. 2.43
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand SATCO
Amps 0.500-0.217/0.583-0.253/0.667-0.289A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Beam Spread 180
Burning Position Universal
CCT Selectable Yes
CA Web Text Lawful for sale
CO Terse Lawful for sale
CRI 80
Dimmable Yes-Dimmable
DLC Approved Yes
DLC Classification Standard
DLC ID S-ARHCWO
DLC Primary Use Replacement Lamps for Outdoor Pole/Arm-Mounted Area and Roadway Luminaires (Type B)
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
HID Equiv 200W/250W/320W
Avg Rated Hours 50000
Image File Name S28932R1.jpg
Incandescent Equiv 400W
Lamp Base Mogul Extended
Lamp Shape Integrated LED
Lamp Ballast Type A/B/C Type B
Lens Material Polycarbonate (PC)
Lumens 9000L/10150L/11200L
Material Aluminum
Minimum Compartment Size Length: 11 in. Width: 11 in. Height: 9.2 in.
MOD Decimal In. 8.9
MOL Decimal In. 8.86
Operating Frequency 50/60Hz
Operating Temp -30C (-22F) to +45C (+113F)
Power Factor >0.9
Rated For Enclosed Fixture Yes
Rated For Vapor Tight Fixture No
Replaces S28931;S28932
RoHS Compliant Yes
Safety Listing cULus - Classified;cULus - Listed
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 4KV
Technology LED
Temperature (CCT) 3000K/4000K/5000K
THD <20%
Three-Way Yes
Volts 120V-277V
Watts 60W/70W/80W
Weight Lb. 2.43
