SATCO | SKU:
S28931
80W/LED/HID/SB/3K/EX39

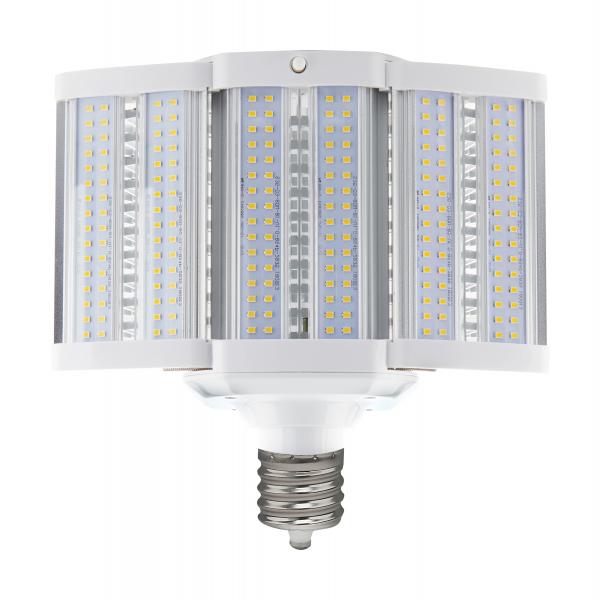

80 Watt LED Hi-lumen shoe box style lamp for commercial fixture applications - 3000K - Mogul Extended - Type B Ballast Bypass -100-277 Volt
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand SATCO
Amps 0.800-0.289A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 180
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Warm White
CRI 83
DLC Approved Yes
DLC Classification Standard
DLC ID PLCJ1VZZZ3RL; PL40XQHEANF
DLC Primary Use Replacement Lamps for Outdoor Pole/Arm-mounted Area and Roadway Luminaires (Type B)
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Shoebox
HID Equiv 250W
Avg Rated Hours 50000
Housing Color White
Image File Name S28931.jpg
Incandescent Equiv 400W
Indoor Outdoor Outdoor
IP Rating IP64
Lamp Base Mogul Extended
Lamp Filament LED
Lamp Shape Corncob
Lamp Ballast Type A/B/C Type B
Lensed Yes
Lens Finish White
Lens Material Plastic (PS)
Lumens 10400L
Material Aluminum / Plastic
Minimum Compartment Size Length: 11 in. Width: 9.2 in. Height: 11 in.
MOD Decimal In. 4.38
MOL Decimal In. 8.77
NSF Approved No
Operating Frequency 50/60Hz
Operating Temp -30C (-22F) to +45C (+113F)
Order In Multiples Of 1
Power Factor 0.9
Product Notes This is not to be used with a ballast
Rated For Enclosed Fixture Yes
Replaces S8931
RoHS Compliant Yes
Safety Listing cUL - Certified;cUL - Classified
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 4KV
Technology LED
Temperature (CCT) 3000K
THD 15.10%
Three-Way No
Volts 100V-277V
Watts 80W
Weight Lb. 2.42
IOT Enabled Yes
UNSPSC 39101628
Warranty 5 Year Limited - Hi-Pro
Brand SATCO
Amps 0.800-0.289A
ANSI Base EX39
Ballast Bypass Direct Ballast Bypass
Ballasting Requirements Ballast Bypass
Beam Spread 180
Burning Position Universal
CCT Selectable No
CA Web Text Lawful for sale
CO Terse Lawful for sale
HI Terse Lawful for sale
NV Terse Lawful for sale
VT Terse Lawful for sale
Color Temp Warm White
CRI 83
DLC Approved Yes
DLC Classification Standard
DLC ID PLCJ1VZZZ3RL; PL40XQHEANF
DLC Primary Use Replacement Lamps for Outdoor Pole/Arm-mounted Area and Roadway Luminaires (Type B)
Enclosure Rating Enclosed Rated Lamp
ENERGY STAR No
FCC Compliant Yes
BAA Compliant No
Finish White
Product Type Shoebox
HID Equiv 250W
Avg Rated Hours 50000
Housing Color White
Image File Name S28931.jpg
Incandescent Equiv 400W
Indoor Outdoor Outdoor
IP Rating IP64
Lamp Base Mogul Extended
Lamp Filament LED
Lamp Shape Corncob
Lamp Ballast Type A/B/C Type B
Lensed Yes
Lens Finish White
Lens Material Plastic (PS)
Lumens 10400L
Material Aluminum / Plastic
Minimum Compartment Size Length: 11 in. Width: 9.2 in. Height: 11 in.
MOD Decimal In. 4.38
MOL Decimal In. 8.77
NSF Approved No
Operating Frequency 50/60Hz
Operating Temp -30C (-22F) to +45C (+113F)
Order In Multiples Of 1
Power Factor 0.9
Product Notes This is not to be used with a ballast
Rated For Enclosed Fixture Yes
Replaces S8931
RoHS Compliant Yes
Safety Listing cUL - Certified;cUL - Classified
Location Rating Damp
SDS class LED_Lamp
Surge Protection Built-in surge protection - 4KV
Technology LED
Temperature (CCT) 3000K
THD 15.10%
Three-Way No
Volts 100V-277V
Watts 80W
Weight Lb. 2.42
IOT Enabled Yes
